Mall 【Thailand Stock】220V 0.75KW/1.5KW/2.2KW 1HP/2HP/3HP ประหยัด Mini VFD Variable Frequency Drive Converter ตัวแปลงความถี่ – โปรปัง

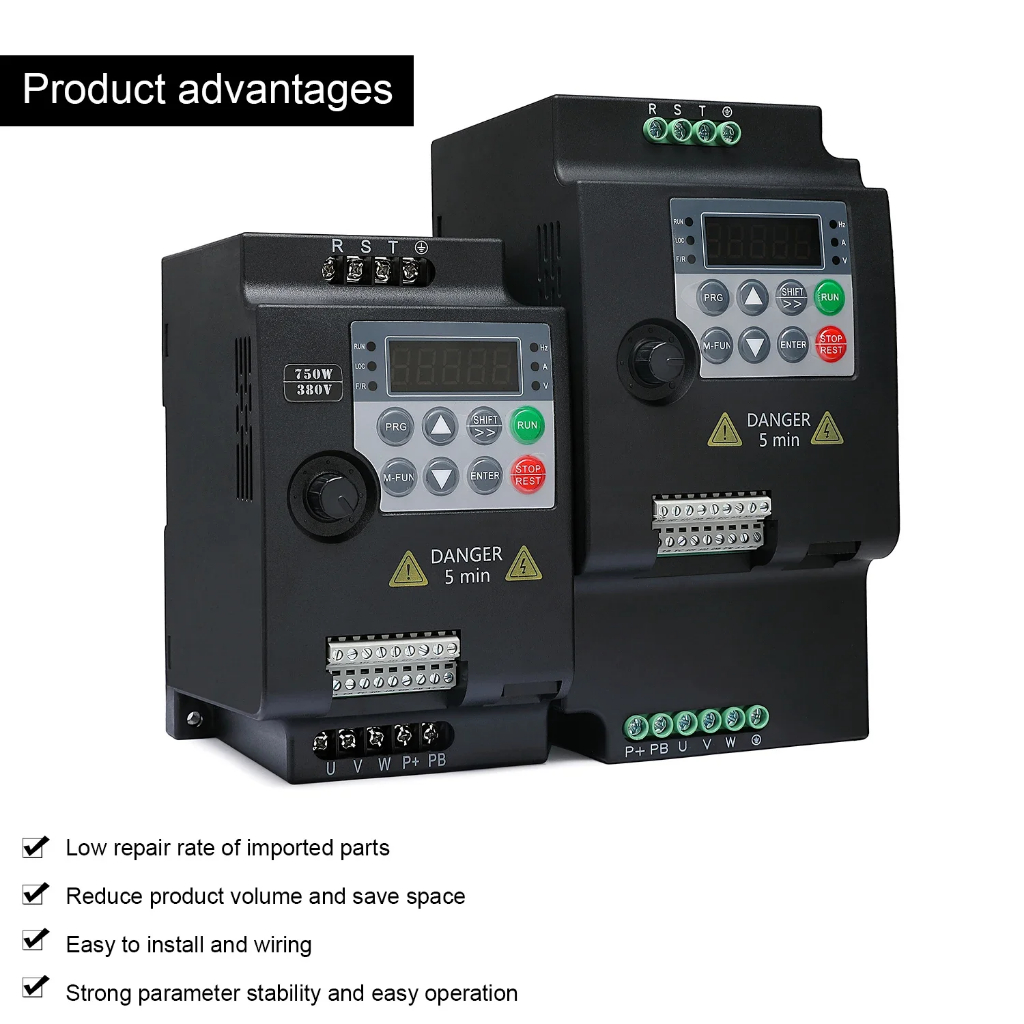

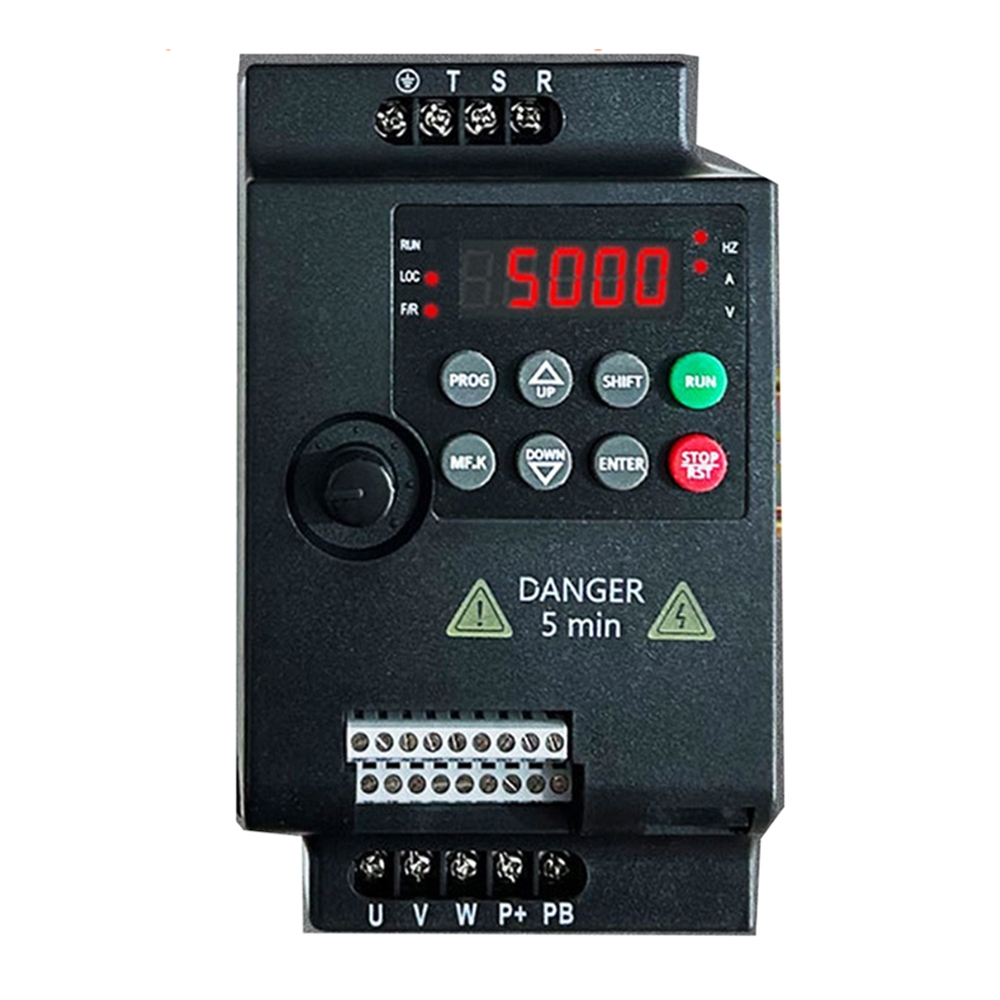

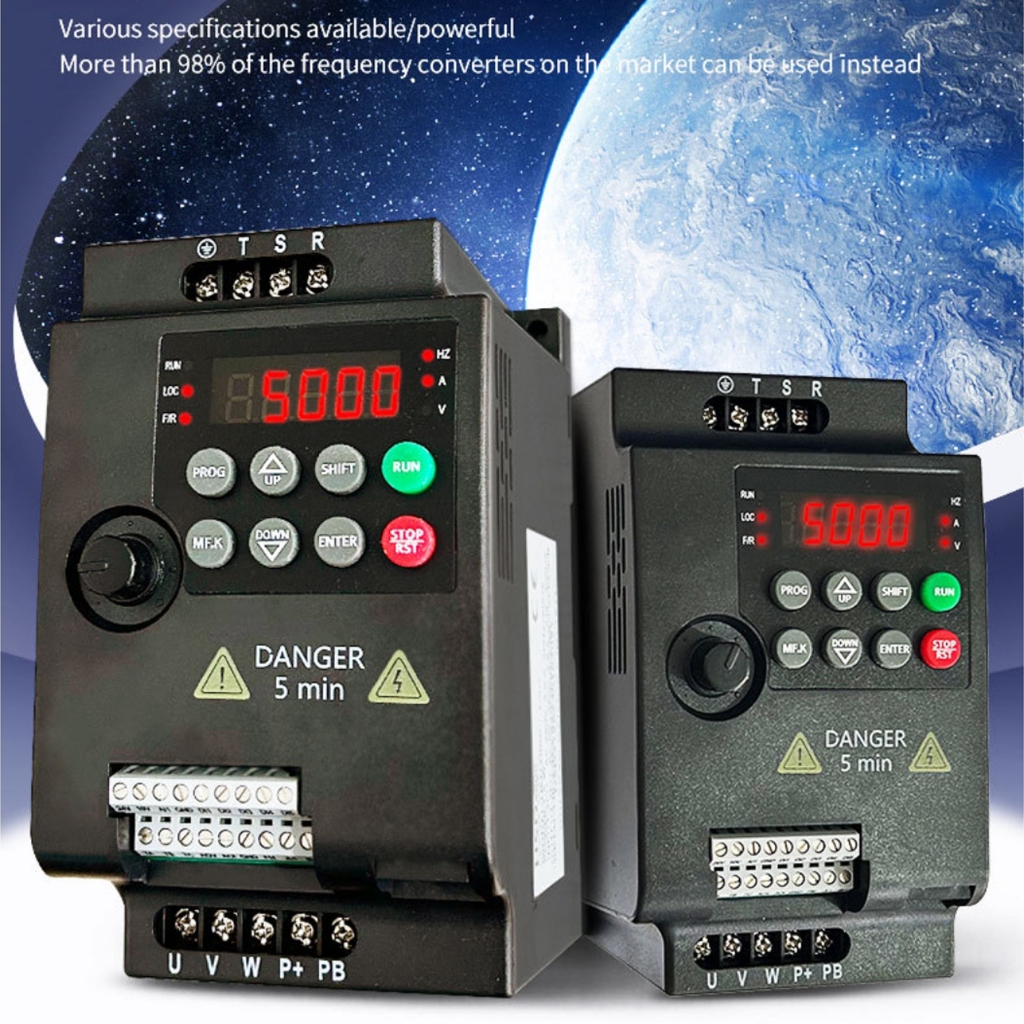

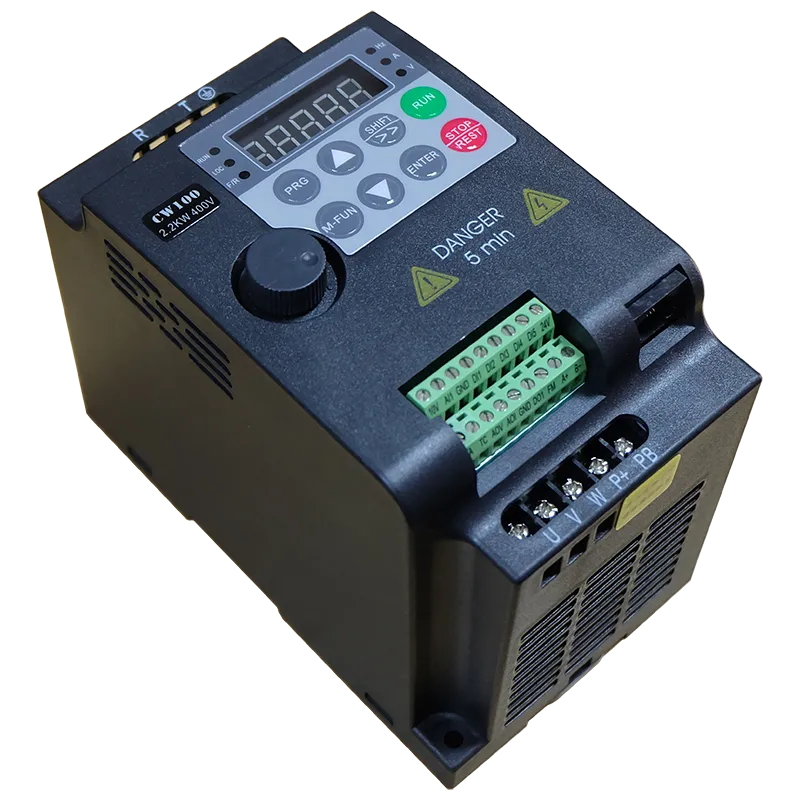

Product Introduction
Function advantages:
1. Forward, reverse, start and stop controlled by panel or external terminals.
2. Adjust speed by panel potentiometer or external potentiometer.
3. Built-in brake unit (for connecting brake resistance).
4. PID function (Constant pressure water supply).
5. Multi-stage run.
6. RS485 communication protocol by PLC.
7. Vector control, low frequency high torque.
8. Optional external control panel(not included in the package).
9. Overload protection.

Specifications:

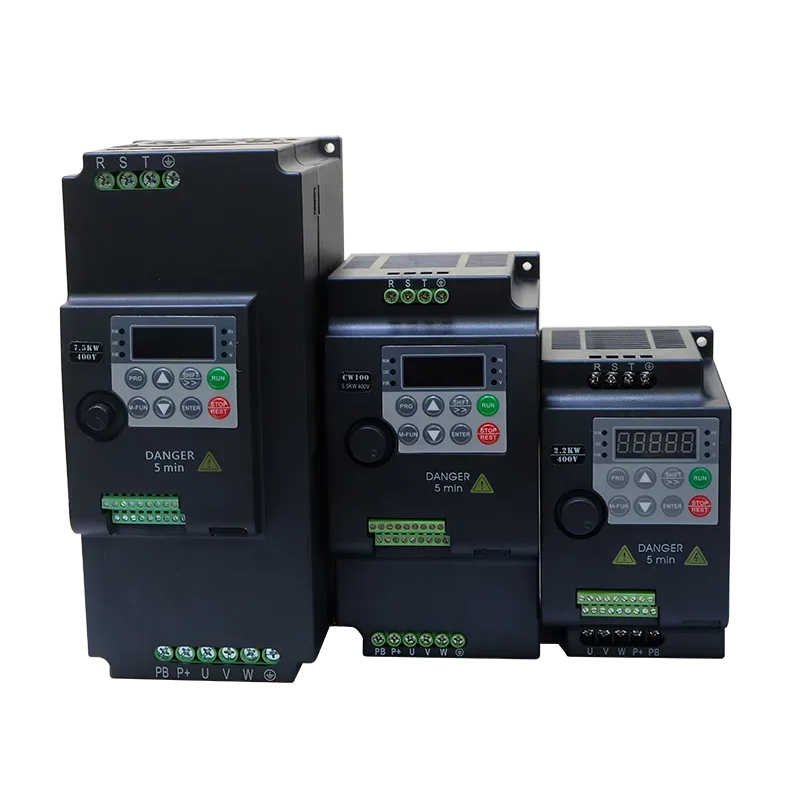

Rated power: 0.75kw/1.5kw/2.2kw
Rated output current: 4A(for 0.75kw)/7A(for 1.5kw)/9.6A(for 2.2kw)
Input voltage: 1 phase 220v
Output voltage: 3 phase 220v
Installation dimension: 130x73mm

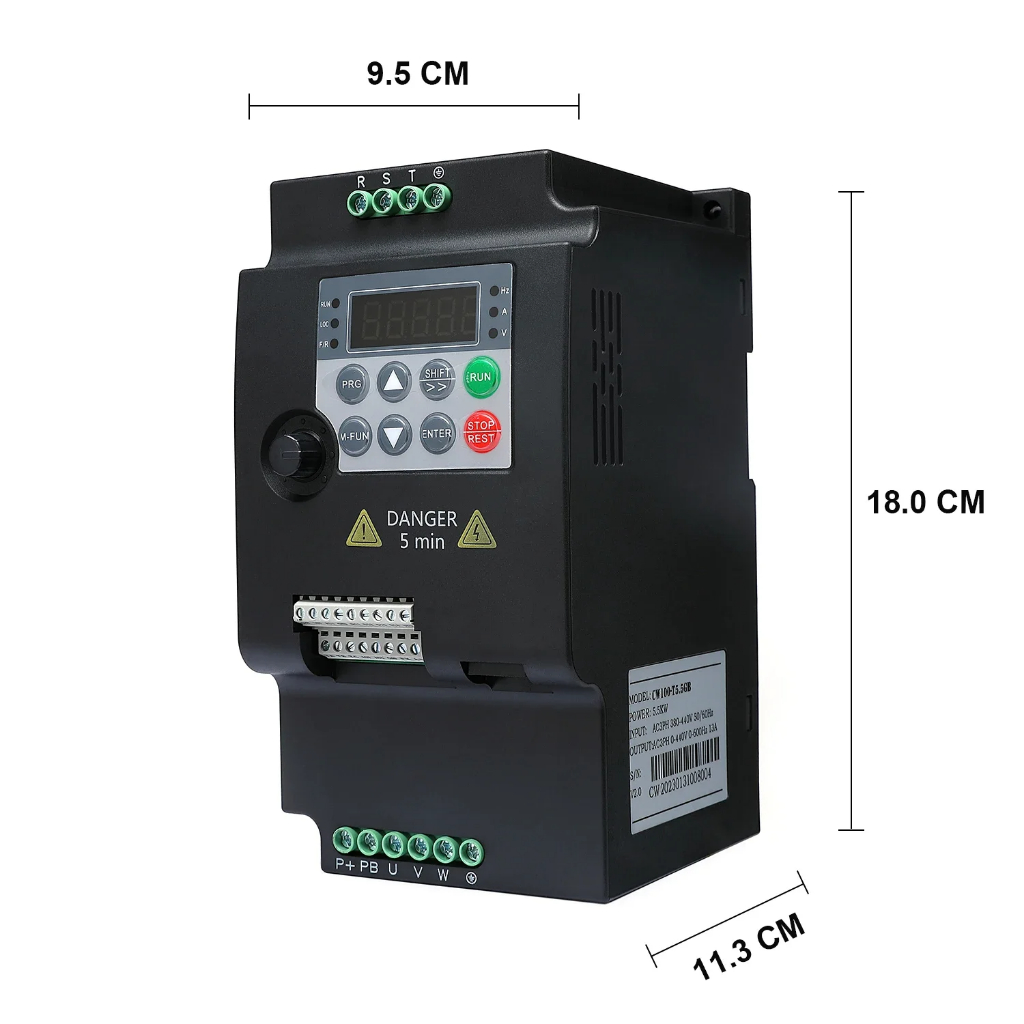

External dimension: 145x110x85mm
Mounting hole dimension: 61x81mm
Net Weight: 1kg

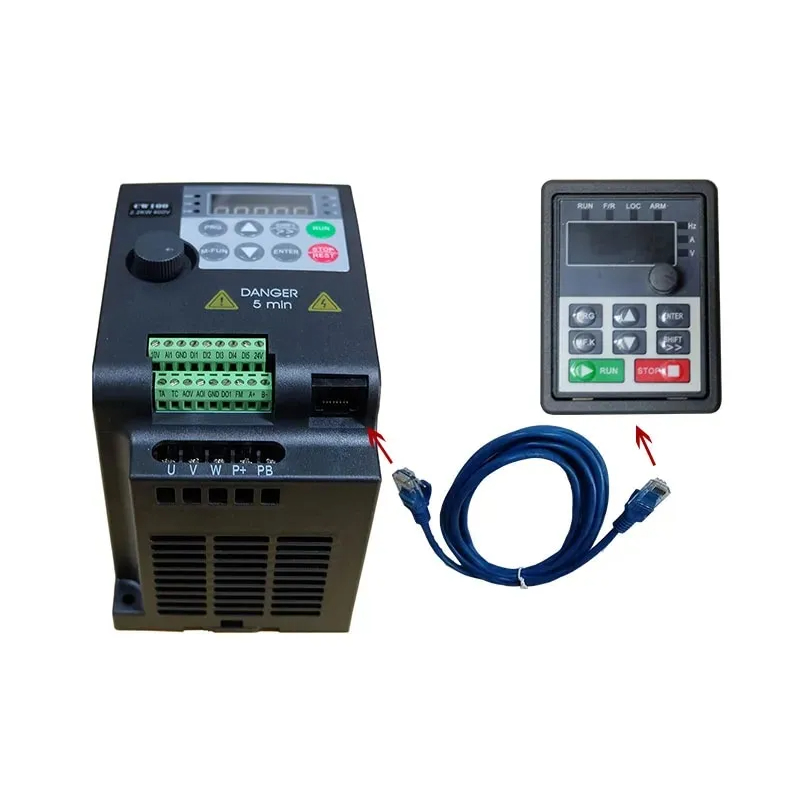

Optional external control panel(not included in the package):

Installation:
Note：before wiring, please read【the safety precautions】carefully. Pay attention to life safety and prevent the equipment from danger.

Feedback:
Your positive (5 stars) feedback is highly appreciated. We guarantee the product quality and service. If you have any questions, please feel free to contact us.
