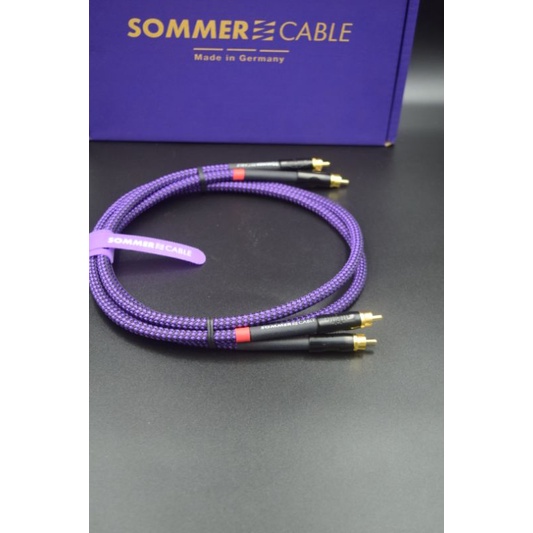

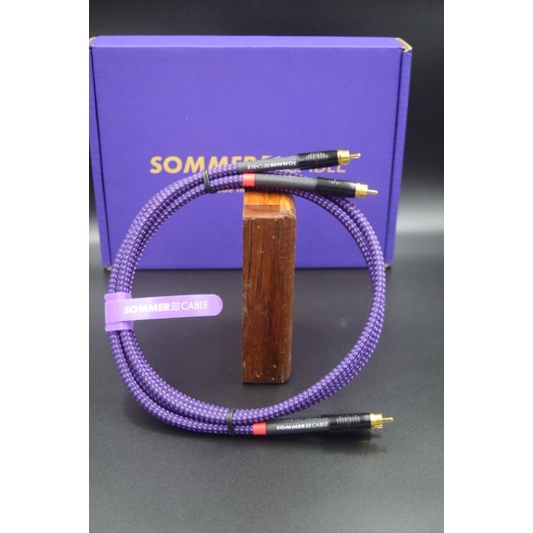

Mall สาย​ Interconnect​ RCA​ Summer Cable (1m)

สาย​ Interconnect​ RCA​ Summer Cable

The marathon runner…
Will have a hard time and must run. Likewise
our cables must cover the long distances at
the sports arena. But they will lie and not run.
So due to its cross-section 2 x 0,50 mm?, this
cable is also ideal for theaters, public
buildings, etc. Owing to the 100 % shielding
and the thick outer jacket, the SC-Primus is
also recommended for installations at
discotheques, because neither the aggressive
nicotine nor wild temperature fluctuations can
hardly do any harm to this cable. Gigging
musicians swear by this cable, rental shop
owners prefer the SC-Primus because of its
durability and a slight bounce, making manual
winding easy.
Advantages:
Optimum transmission quality even with
excess lengths due to the large wire gauge
of 2 x 0,50 mm2
100 % shielding due to dense helical
copper mesh screen and extra metallised
fleece
Great durability due to the thick PVC with a
diameter of 6,70 mm
Easy to reel and good tensile strength

Technical Data
Signal transmission:                         symmetrical
Construction :                     (2LI2Y0,50mm2)(ST)DY
Jacket material :                                          PVC
Jacket  [mm] :                                               6,70
Number of Channels (audio):                       1
Inner conductor (audio) :                               2
Inner conductor (audio) [mm?] :                 0,50
Inner conductor  (audio) [mm] :                  0,80
AWG (audio) :                                                    20
Shielding :               Copper spiral sleeve tin-plated
                                  + metalic fleece
Shielding factor [%] :                                       100
Copper strands (audio):                                   28
Copper strand  (audio) [mm] :                        0,15
Conductor insulation material :                      PE
Conductor insulation  [mm] :                          1,65
Weight per 1 m [g] :                                          53,97
UV-resistant :                                                      yes
Fire load per m [kWh] :                                     0,23
Style variant :                                                    round
Temperature min. [‘C] :                                    – 25
Temperature max. [‘C] :                                     70

Capac. cond./cond. per 1 m (audio) [pF] :         80
Capac. cond./shield. per 1 m (audio) [pF] :      145
Insulation resist. per 1 km [G ohm] :                    1
Insulation resist. per 1 km (audio) [G​ ohm]        1
Conductor resistance per 1 km [ohm] :              37
Shield. resistance per 1 km [ohm] :                     27

   ราคาชุดละ​ 1,490​ บาท​ จัดส่งฟรี​ทั่วประเทศ
