Mall APC เครื่องสำรองไฟ Line-interactive SMV 1000VA 230V, Universal Outlet รหัส SMV1000I-MS รุ่น Easy UPS

Technical Specifications

Output
Max Configurable Power (Watts) : 700 Watts / 1.0kVA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Unsynchronised
Load Crest Factor : 3 : 1
Topology : Line interactive
Waveform type : Sine wave
Transfer Time : 2-6 ms typical : 12 ms maximum

Input
Input frequency : 45 – 65 Hz +/- 0.1 Hz Auto-sensing
Input voltage range for main operations : 165 – 290V
Number of Power Cords : 1
Other Input Voltages : 220 V, 240 V

Batteries & Runtime
Battery type : Lead-acid battery
Typical recharge time : 4hour(s)
Nominal Battery Voltage : 24 V
Expected Battery Life (years) : 3 – 5
Battery Charge Power (Watts) : 37 Watts
Battery Volt-Amp-Hour Capacity : 168

Co MMunications & Management

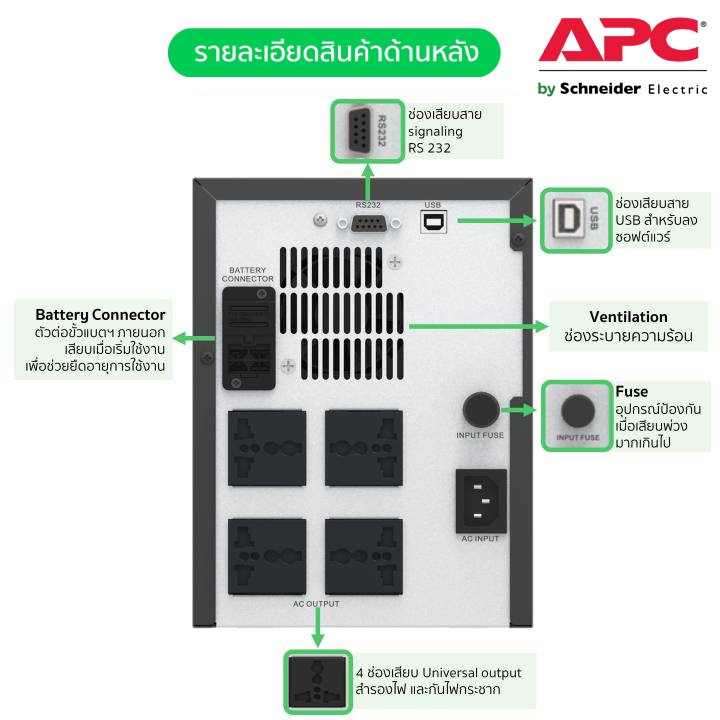

Interface Port(s) : USB
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering
Surge energy rating : 190Joules

Physical
Maximum Height : 220 MM, 22.0 CM
Maximum Width : 160 MM, 16.0 CM
Maximum Depth : 410 MM, 41.0 CM

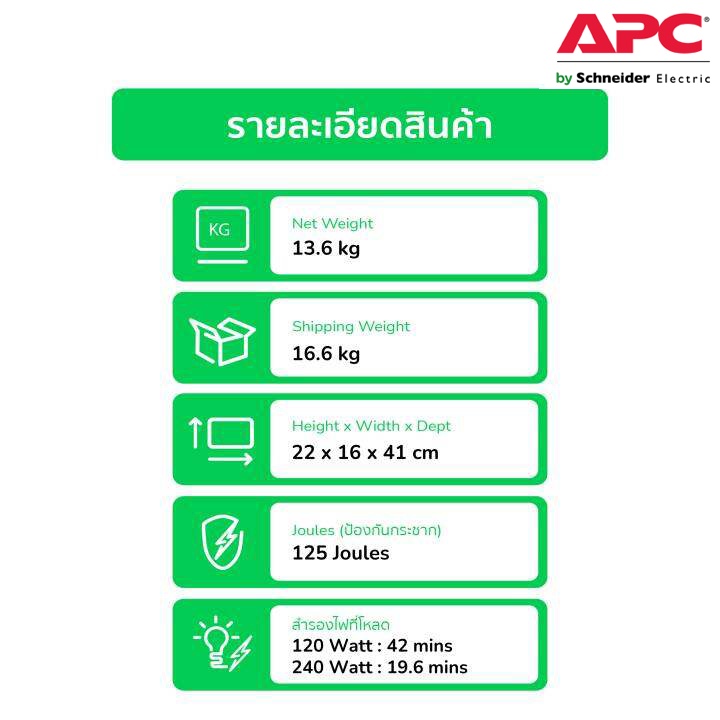

Net Weight : 13.6 KG
Shipping weight : 16.6 KG
Shipping Height : 339 MM, 33.9 CM
Shipping Width : 272 MM, 27.2 CM
Shipping Depth : 508 MM, 50.8 CM
Color : Black

Environmental
Operating Temperature : 0 – 40 °C
Operating Relative Humidity : 0 – 95 (Non-condensing) %
Operating Elevation : 0 – 3000meters
Storage Temperature : -10 – 40 °C
Storage Relative Humidity : 0 – 95 (Non-condensing) %
Storage Elevation : 0 – 15000meters
Audible noise at 1 meter from surface of unit : 45.0dBA
Protection Class : IP20

Warranty : 2 Years
