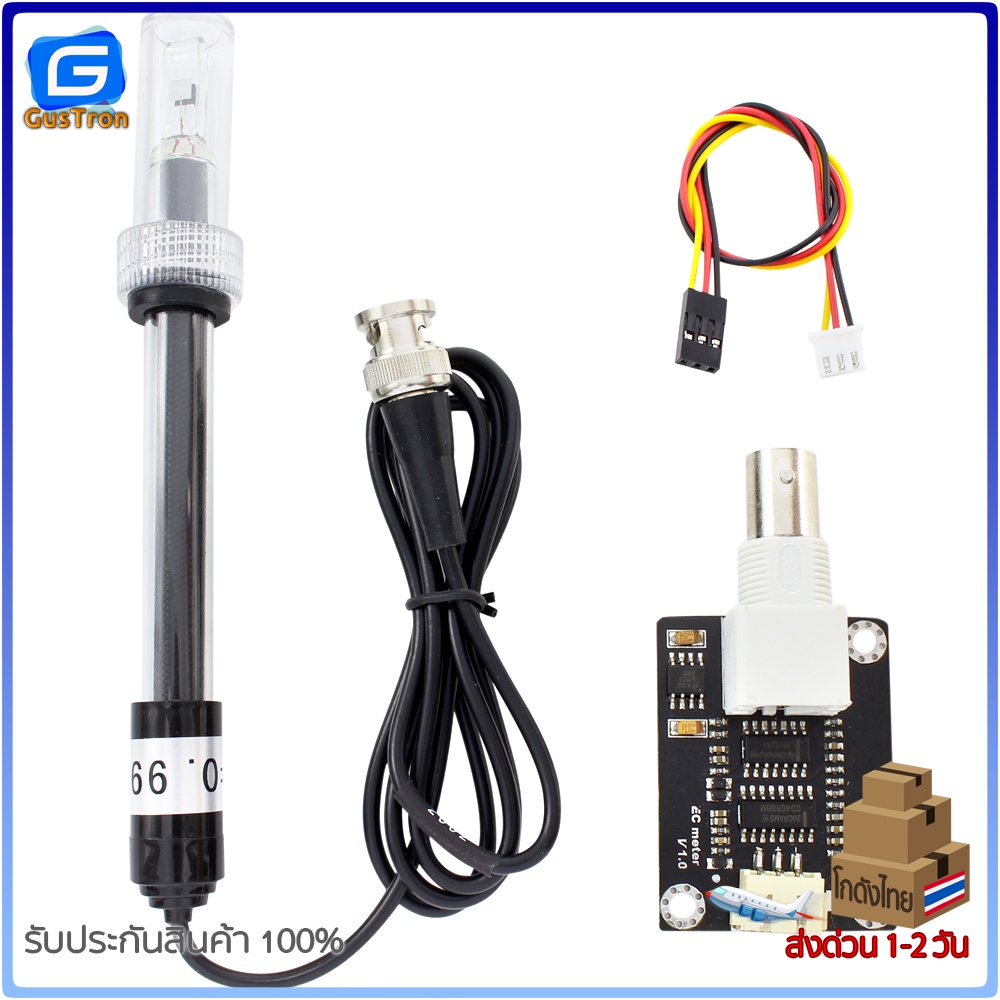

Mall EC sensor เซ็นเซอร์วัดค่าการนำไฟฟ้าของน้ำ arduino

EC sensor เซ็นเซอร์วัดค่าการนำไฟฟ้าของน้ำ arduino

โค้ดตัวอย่าง
https://wiki.dfrobot.com/Gravity__Analog_Electrical_Conductivity_Sensor___Meter_V2__K%3D1__SKU_DFR0300

Product introduction

This analog conductivity meter has the characteristics of simple connection, convenient and practical.After connecting according to the schematic diagram, and then through program control, it is very convenient to measure the conductivity of the solution.

The most important thing is that we open source all the design and code. Users can easily collect conductivity data through Arduino for further control and research. Fans are welcome to research and share and provide valuable feedback.

Conductivity is the ability of a substance to carry a current and is the reciprocal of resistivity. In the liquid, the electrical resistance of the electrical resistance is often measured by the reciprocal of the electrical resistance. The conductance of water is a very important indicator of water quality, and it reflects the extent of electrolytes present in the water. The degree of conductivity of the solution varies depending on the concentration of the electrolyte in the aqueous solution. In the International System of Units, the unit of conductivity is called Siemens/meter (S/m), and other units are: S/m, mS/cm, μS/cm.

Application range

Water quality testing
Water and soil mixed agriculture
aquaculture
Ornamental aquarium
Technical Parameters

Working voltage: +5.00V
PCB size: 45mm × 32mm
Measuring range: 1ms/cm–20ms/cm
Applicable temperature: 5-40 ° C
Accuracy: <±10%FS (specific accuracy depends on your calibration accuracy) XH2.54 interface (3 foot patch) BNC interface type conductivity electrode (electrode constant is 1) Conductor electrode cable length: about 60 cm Power Indicator ❤️ ❤️❤️ ✅ สินค้าพร้อมส่งโกดังไทย ไม่ต้องรอของนาน จัดส่งรวดเร็ว ทันใจ ✅ มีเก็บเงินปลายทาง ✅ จัดส่งรวดเร็ววันจันทร์-เสาร์ ✅ สินค้าปรับประกัน 100% มีปัญหา inbox เข้ามาได้เลยค่ะ ✅ มั่นใจ 100% ได้รับสินค้าแน่นอน
