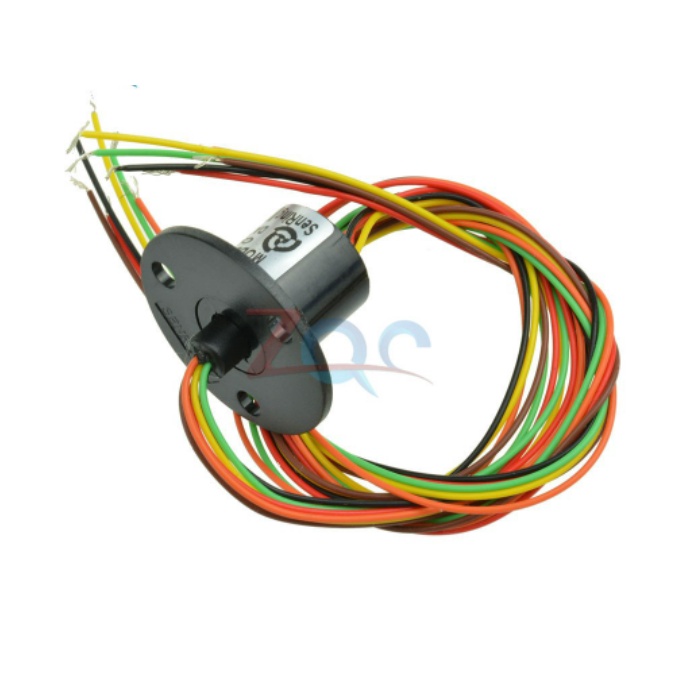

Mall Collector Ring High Speed Ball Slip Ring PTZ Slip Ring Stage Light Slip Ring Conductive 12.5 มม 300rpm 6wires 2A

– Voltage: 240 VAC/DC
– Current: 2A per circuits
– Speed: 0-300 Rpm
– Circuits: 6
– Housing Material: Engineering Plastics
– Work Humidity: 60%RH or higher
– Work Temp.: -40°~+80°
– Contact material: Gold plated ring-Gold plated brush
– nsulation resistance: 1000 Mω @ 500 VDC
– Lead size: 225mm 30# AWG Teflon wire
– Dielectric strength: Between each circuit and all other circuits , ≥ 500 VAC @ 50Hz
– Electrical noise: ≤10mω
– Work life: Depending on speed and working environment, ≥50,000,000 runs ref
– Outside dia: 12.5mm
– Flange dia.: 24mm
– Length: 15mm
– CE, ROHS passed
