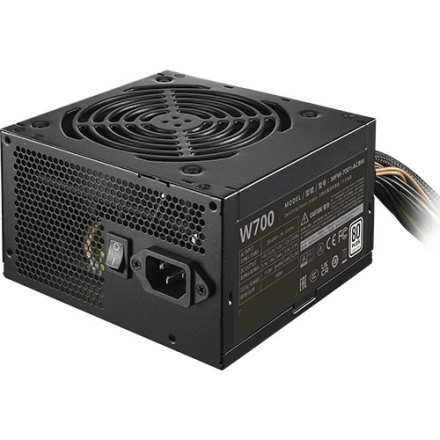

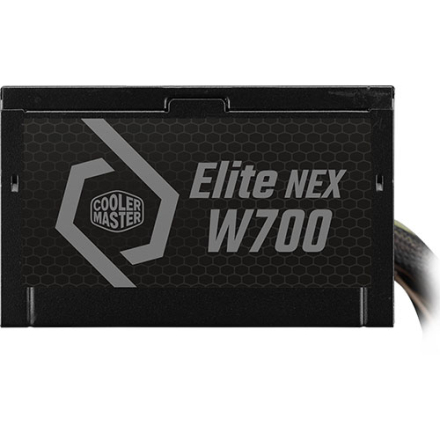

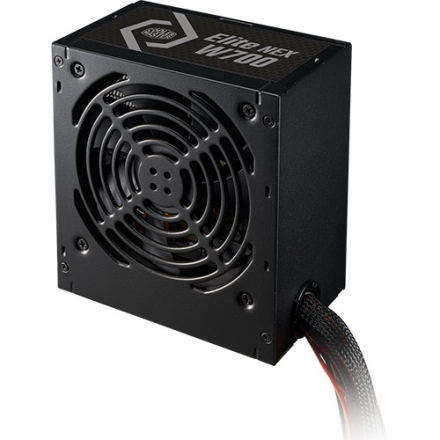

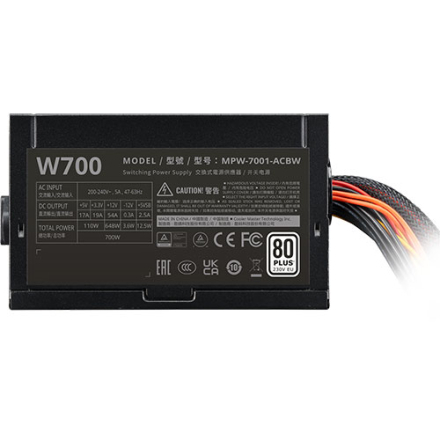

Mall POWER SUPPLY (อุปกรณ์จ่ายไฟ) COOLER MASTER Elite NEX 230V 600W, 700W

SPECIFICATION

Model
MPW-6001-ACBW-B

PFC Active PFC

Input Voltage 200-240V

Input Current 4.5A

Input Frequency 50-60Hz

Dimensions (L x W x H)
140 x 150 x 86 mm

Fan Size 120mm

Fan Bearing Sleeve Fan

Efficiency
≥ 85% @ Typical Load

ErP 2014 Lot 3 Yes

Operating Temperature 0-40°C

Power Good Signal
100 – 500 ms

Hold Up Time
≥10ms at 100% load

MTBF
>100,000 Hours

Protections
OVP, OPP, SCP, UVP, OTP, Inrush Protection

Regulatory
TUV, cTUVus, CE, FCC, CCC, EAC, UKCA

ATX 24 Pin Connectors 1

EPS 4+4 Pin Connectors 1

SATA Connectors 5

Peripheral 4 Pin Connectors 3

PCI-e 6+2 Pin Connectors 2

Series Elite Series

80 Plus Standard

Modular
Non Modular

Wattage
500 to 750W
