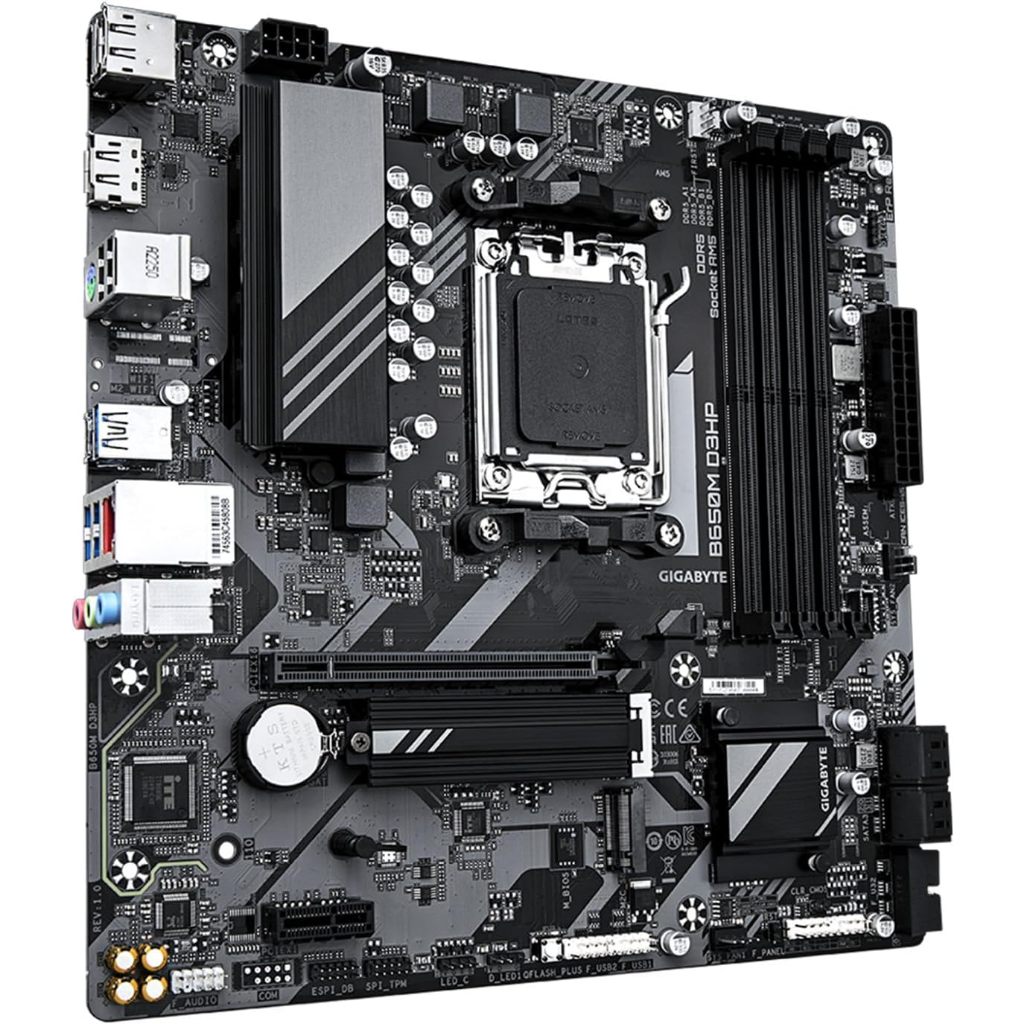

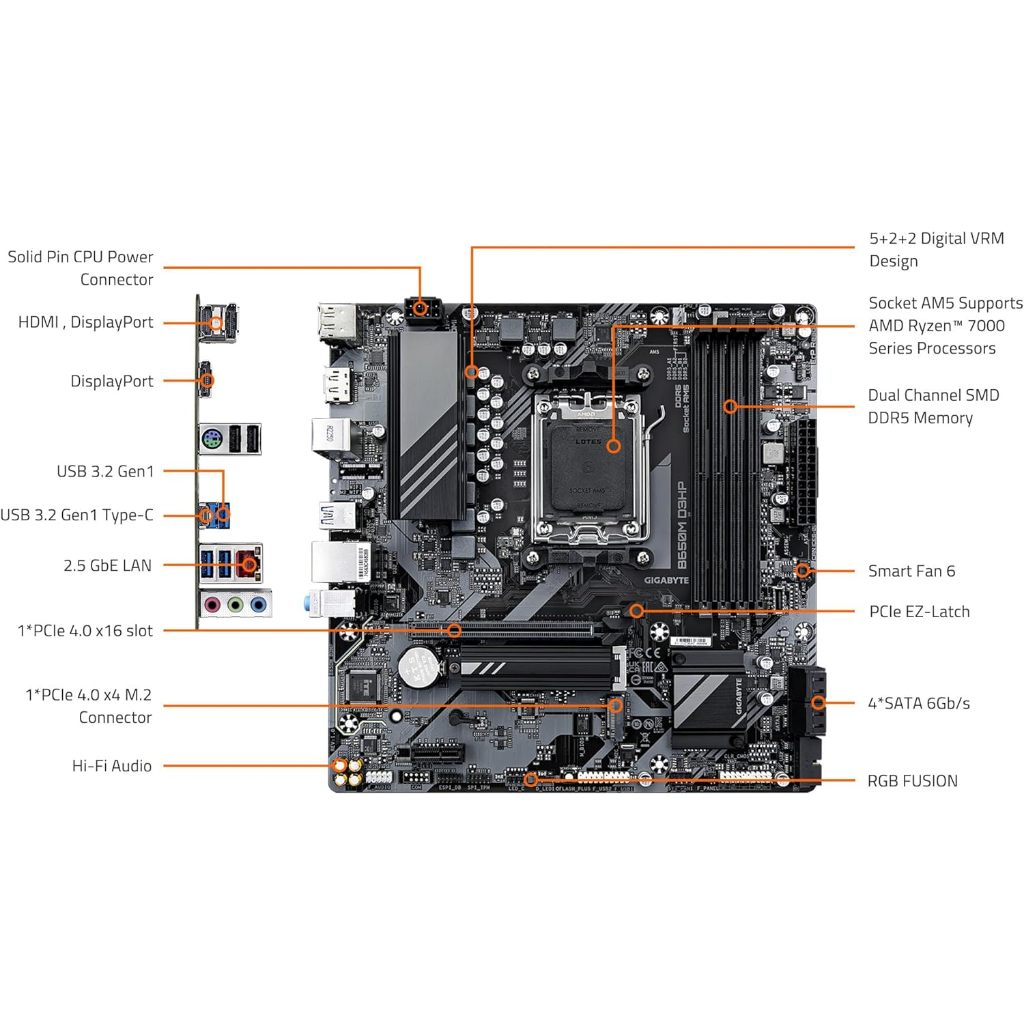

Mall MAINBOARD (เมนบอร์ด) GIGABYTE B650M D3HP (DDR5) (SOCKET AM5) (MICRO-ATX)

Model
BrandGigabyte
ModelB650M D3HP (rev. 1.0)
CPU
SocketAM5 (7000 Series – Raphael)
Wattage170W
ChipsetAMD B650
SeriesRyzen 5 , Ryzen 7 , Ryzen 9
Memory
Slot4
Memory TypeDDR5
Max. Capacity192 GB
Speed4800 , 5200 , 5200 (OC) , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7600 (OC)
Graphic & Audio
GraphicRequires a CPU with Integrated Graphics.
—
Integrated Graphics Processor with AMD Radeon™ Graphics support
• 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version.
• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
—
Support for up to triple-display at the same time
(Graphics specifications may vary depending on CPU support.)
AudioRealtek
2/4/5.1/7.1-channel
Storage
SATA 2- Port
SATA 34 Port
RAIDRAID 0, RAID 1, RAID 10 for SATA storage devices
RAID 0, RAID 1, RAID 10 for PCIe / NVMe storage devices
M.22 x M.2 Connectors
—
Integrated in the CPU:
• 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) Port
Expansion Slots
DetailsCPU:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
—
Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Slot1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot
Network
LANRealtek
LAN Speed100/1000/2500 Mbps
WirelessNo
Back Panel I/O Ports
USB 2.02 Port
USB 3.0- Port
USB 3.1- Port
Serial- Port
USB 3.21 x USB 3.2 Gen 1 Type-C
3 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)- Port
DVI- Port
HDMI1 Port
DisplayPort2 Port
Audio3 Port
PS/21 (Keyboard/Mouse combo) Port
AdditionalNo
LAN1 Port
Form Factor
Form FactorMicro-ATX
Power Connector24 + 8 Pin
Dimension24.4 x 24.4 cm
Warranty
การรับประกัน3 Years
