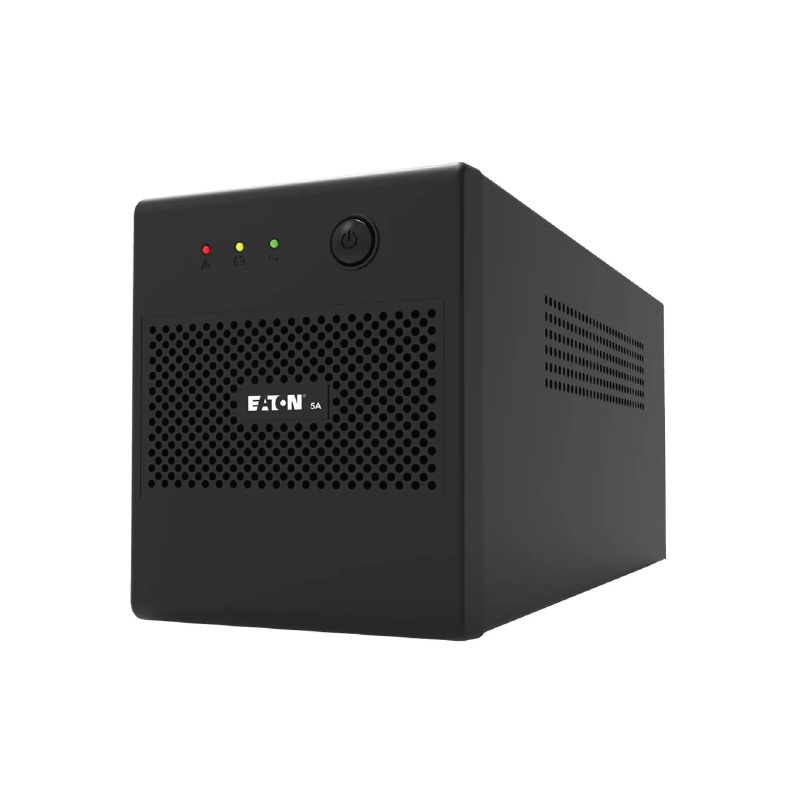

Mall Eaton 5A 2200VA P-5A2200I 2200VA/1200W 4 Universal UPS Warranty 2 Years

TECHNICAL SPECIFICATIONS
Model 5A2200I
Rating (VA/W) 2200VA/1200W
Format Tower
Electrical characteristics
Input voltage range 140–300 VAC
Frequency range 60/50 Hz (Auto sensing)
Surge protection Yes
Generator compatible Yes
Mute by power key Yes
Circuit breaker Yes
Output
Output voltage 230 VAC
Output voltage reg. (Battery mode) ±10%
Battery wave form Stepped sine wave
Protection PCBA current sensor (F/W protection)

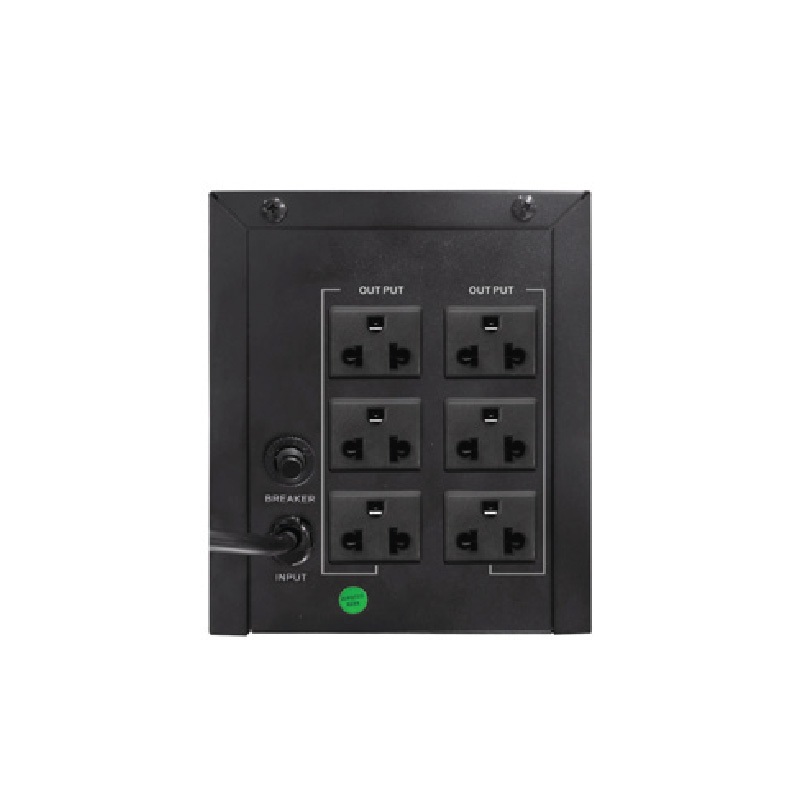

Output backup socket DIN model: (4) Schuko outlets
NEMA model: (6) NEMA universal outlets
UNI model: (4) Universal outlets
Transfer time 2–6ms typical, 10ms max
Battery
Type 12V/9Ah x2
Floating Charging Voltage 27–27.6V
Recharge time 4–6 hours recover to 90% capacity
Typical battery runtime
IT Load (100W) 60 min
50% load 8.5 min
75% load 1.8 min
Interface
On / Off switch Yes
Indicator LED
Communication–USB No
Communication–RS232 No
RJ11 protection No
Physical
Dimension D x W x H (mm) 370*138*165
Weight (kg) 11.7
Package Color box
Customer service and support
Warranty 2 years
