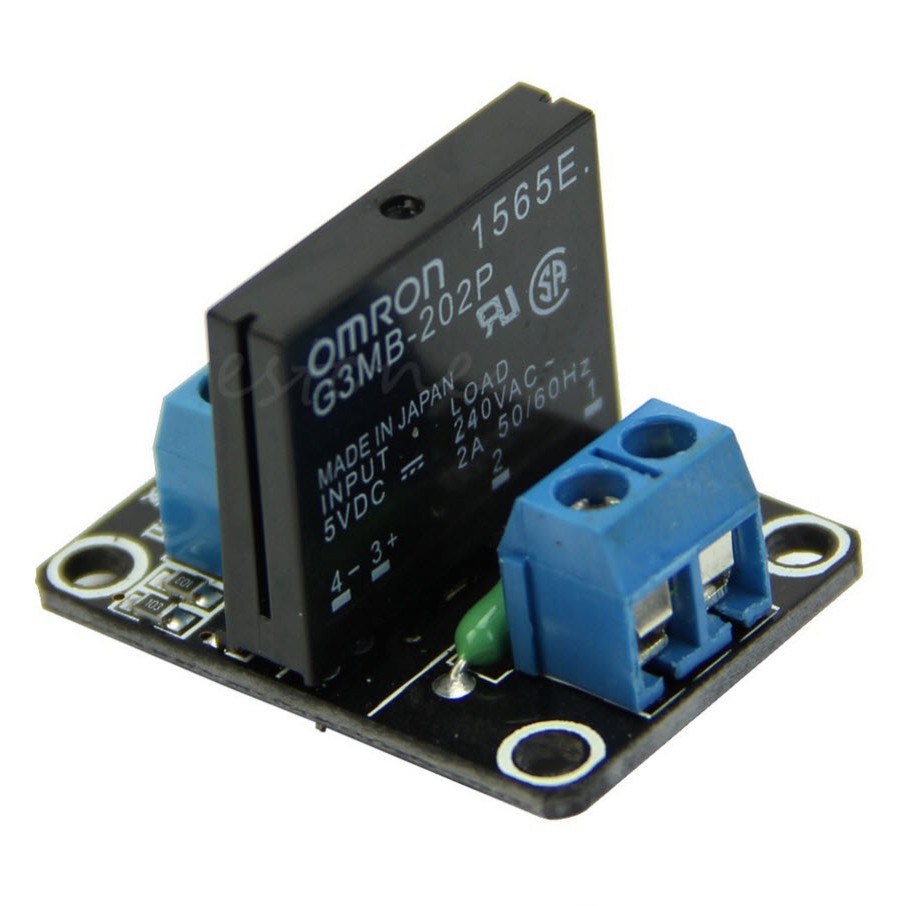

1 Channel 5V DC Solid State Relay Module Board Low Level Trigger G3MB-202P Relay SSR 240V AC 2A for Arduino PLC Controller

Features:
1. 5V Solid State Relay 240V 2A， with Fuse Solid State Relay 240V 2A
2. Size: 25 * 34 * 25 (L * W * H) Net Weight: 13g
3. Input power: 5V DC (160MA)
4. The input control signal voltage: (0-1.5V state low level relay ON) (2.5-5V state high level relay OFF)
Blue KF301 terminal access control line more convenient.

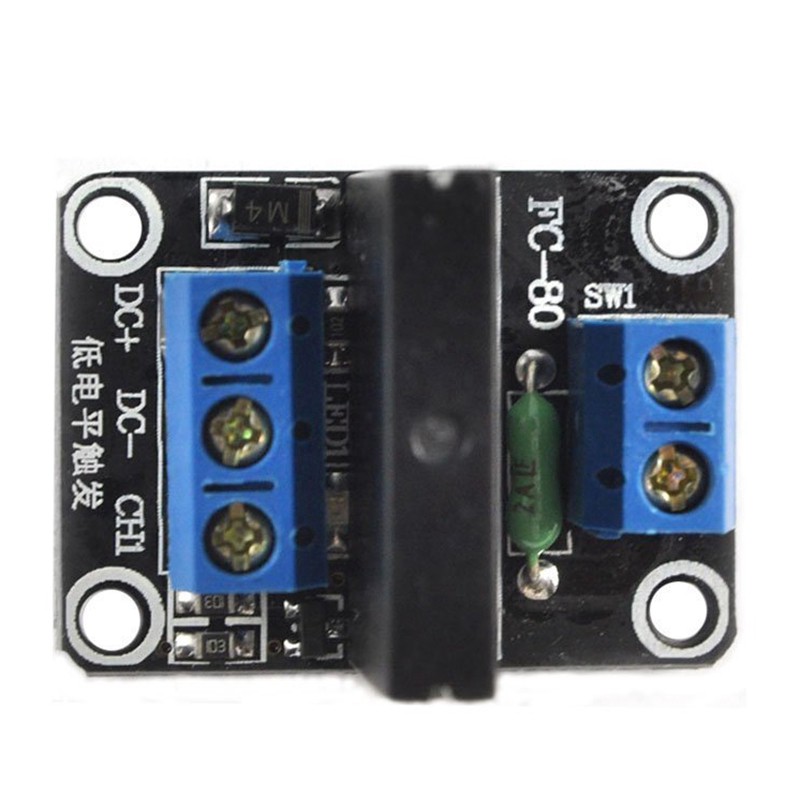

Module Interface

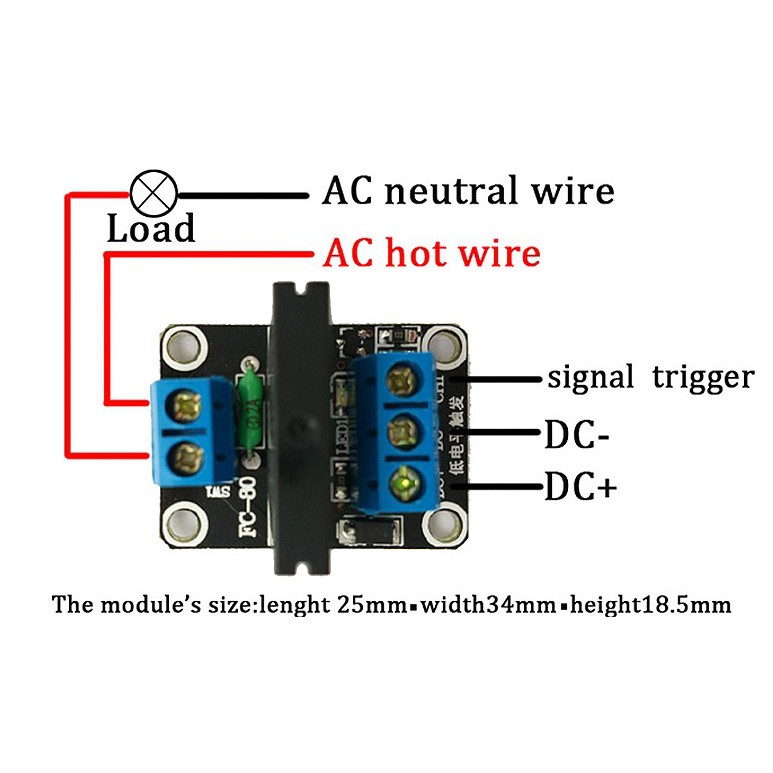

Input section:
DC +: Connect the power supply positive (according to the relay voltage)
DC-: Connect the power supply negative
CH: relay module signal trigger terminal (low level trigger active)

High and low meaning:
High-level trigger refers to the signal trigger side (IN) and the power supply there is a positive voltage between the positive, usually with the power of the positive and trigger connected to a trigger mode, when the trigger side has a positive voltage or trigger Voltage, the relay is pulled.

Low-level trigger refers to the signal trigger terminal and the power supply negative voltage between the OV, or the trigger side of the voltage than the power supply voltage is lower, low to trigger the voltage, so that the relay pull, usually The negative side of the power supply is connected to the trigger terminal and is triggered by the relay.

Electrical parameters
Voltage Version： 5V
Quiescent Current： 0mA
Operating Current : 12.5mA
Trigger Voltage：0-1.5V
Trigger Current： 2mA

product manual:

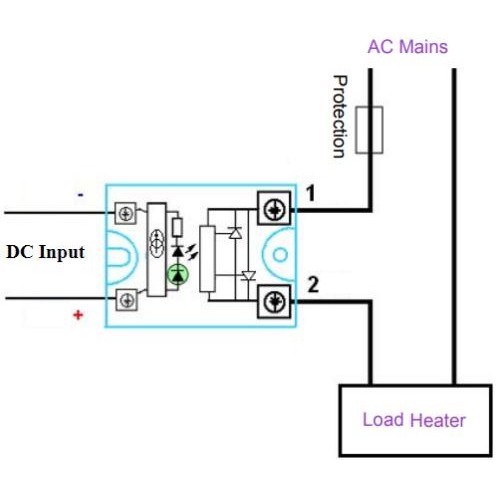

Module power supply: the power must be DC, the voltage and the relay voltage to match

Package Includes :
1 x Solid State Relay Module
