Mall Case HAVN BF360 Flow Black Stone-Textured Front Panel E-ATX Mid-Tower

BF 360 Flow
High-airflow ATX mid-tower with GPU-focused air guide ramp and dual 180mm fans.
Ultra-quiet operation with premium FDB bearings and vibration isolation.

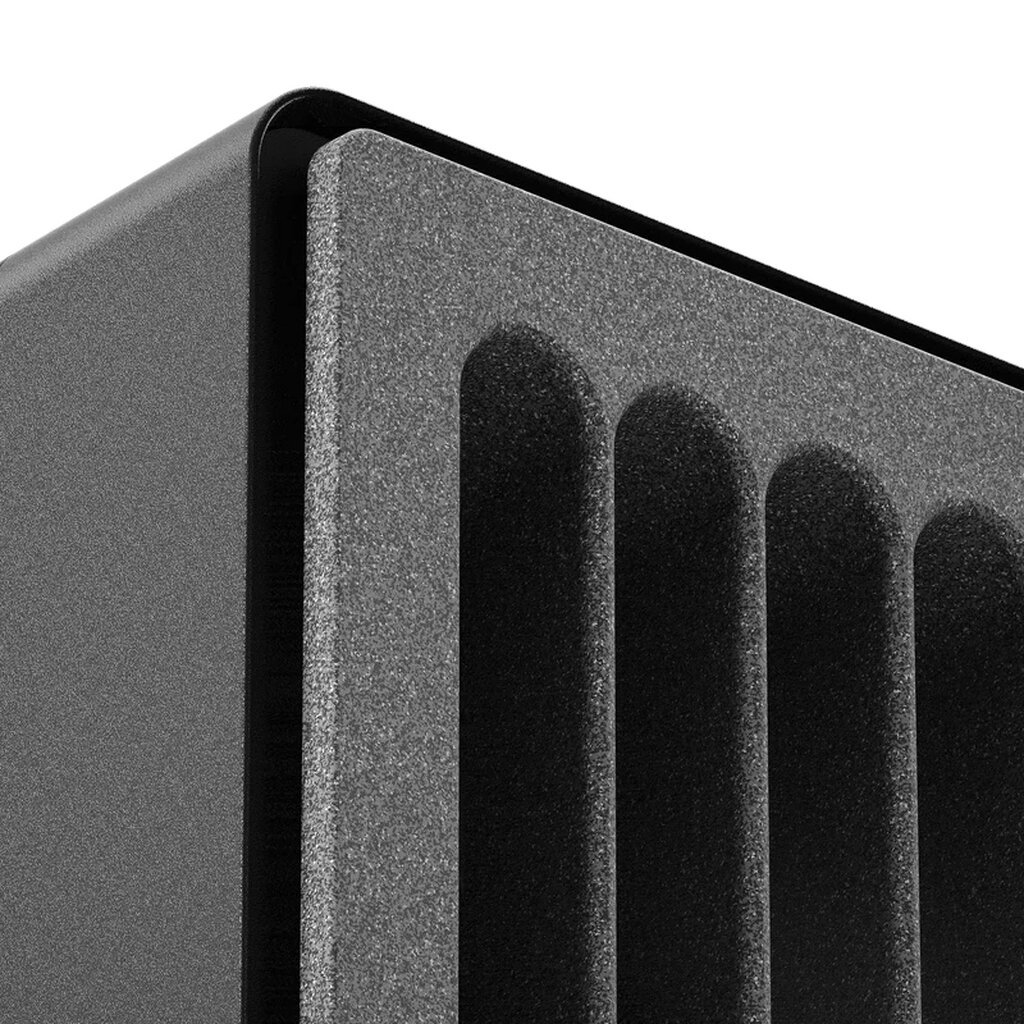

Minimalistic stone-textured front panel with SimpliCable routing system for a cleaner build.

Product Specifications
Form Factor
Mid Tower

Material
SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets

PC Case Dimensions (L x W x H)
515 x 254 x 522.6 mm

Net Weight
14.79 kg

Warranty
1 year

Notice
Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported.

Please review our full warranty terms for more information.

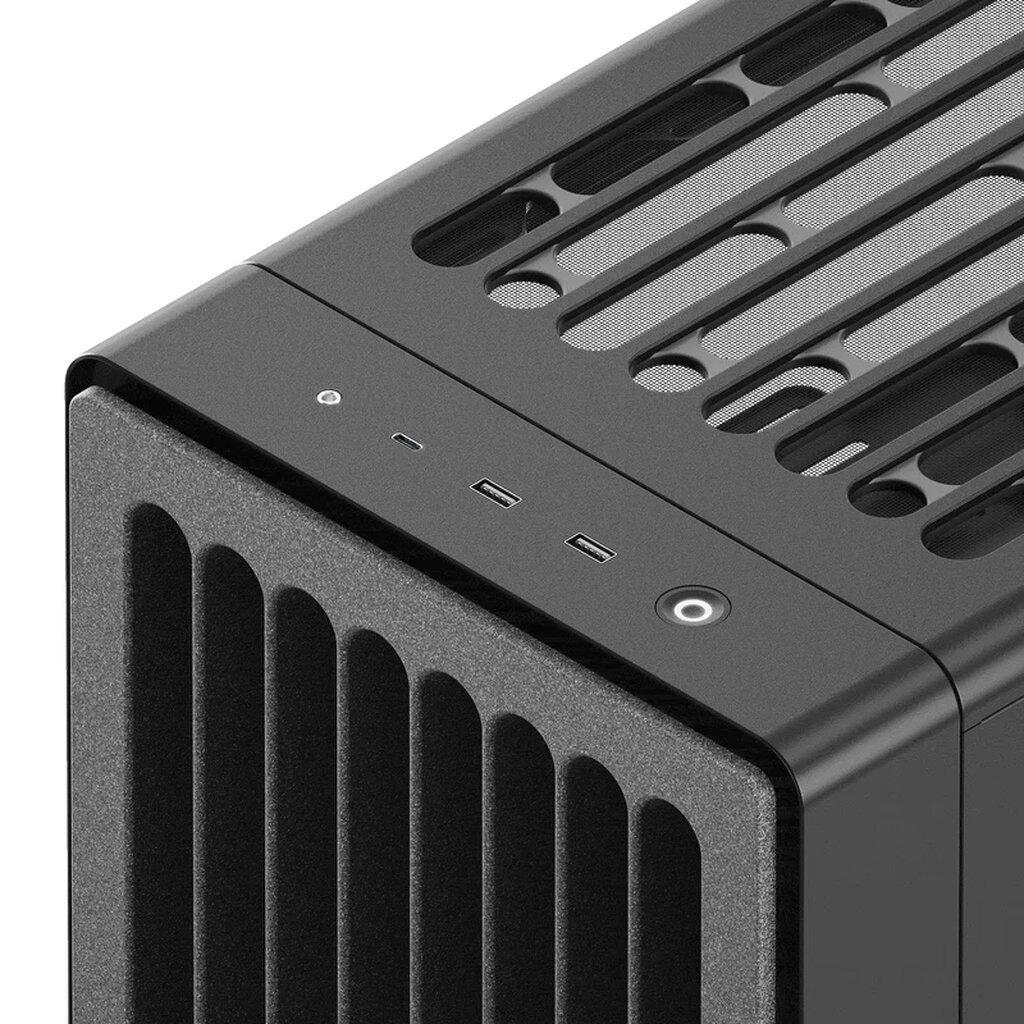

Front I/O
USB 3.2 Gen 2 Type-C x1

USB 3.2 Gen 1 Type-A x2

Audio Jack x1

Power & Reset Button x1

Motherboard Support
E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX

Expansion Slots
7

Fan Support
Maximum Amount: 6

Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm

Front: 2 x 180 mm

Left: N/A

Right: N/A

Bottom: N/A

Rear: 1 x 140 / 1 x 120 mm

Fan PWM Repeater
Fan Ports: 1 x PWM repeaters, 6 ports total

Location: 1 x Cable Management Tray

Fan Connectors: 6 ports per repeater x 4-pin PWM

(Connect your primary fan to the white port to control PWM signal.
All other ports mirror the white port’s signal.)

Fan Rated Voltage: 12V

Fan Safety Current: Up to 2.6A across 6 ports

Power Connector: 1 x SATA Power

Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max)

CPU Tower Cooler Clearance
Height: Up to 195 mm.

Liquid Cooling Support
Top: 240 / 280 / 360 mm

Front: N/A

Left: N/A

Right: N/A

Bottom: N/A

Graphics Card Clearance
Length: Up to 410 mm

Width: Up to 195 mm.

GPU Support
1 – 4.5 Slots

RAM Clearance
If the radiator & fans thickness is greater than 80 mm: 280 mm – 40 mm / 360 mm – 60 mm

Power Supply Support
ATX

Length: Up to 200mm (Clearance – 260mm)

Storage
Right Mount: 2 Storage Bays: 2 x 3.5” / 8 x 2.5”

Cable Management Tray: 1 Storage Bay: 1 x 3.5” / 2 x 2.5”

Storage Bay Included: 2x (2 x 3.5” / 4 x 2.5”)

Dust Filter
Front: 1 (Built-in)

Top: 1 (Built-in)

Rear Bottom: 1 (Removable)

Pre-installed Fans
2x H18 Fan (Front) – Case Version
1x H14 Fan (Rear) – Case Version

(The Loopin™ System is available on the Retail Version only. Pre-installed case fans use single-female fan connectors.)
