Mall บอร์ดป้องกันเครื่องชาร์จ 3S 10A 11.1V 12V 12.6V สำหรับ Li-Ion 18650 BMS 3.7V

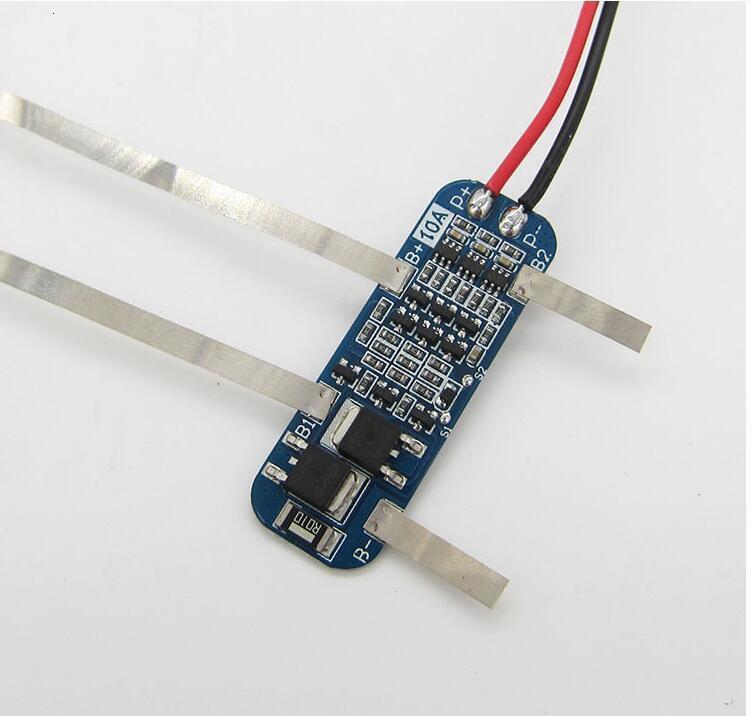

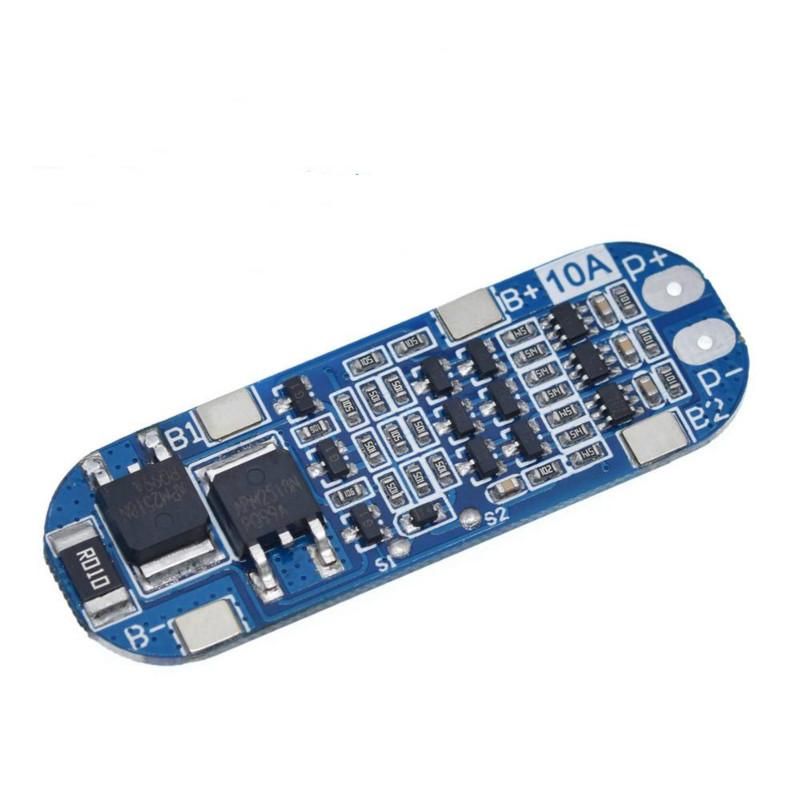

3S 10A 11.1V 12V 12.6V Charger Protection Board Module for 18650 BMS 3.7V

The attribute of the lithium battery protection board:

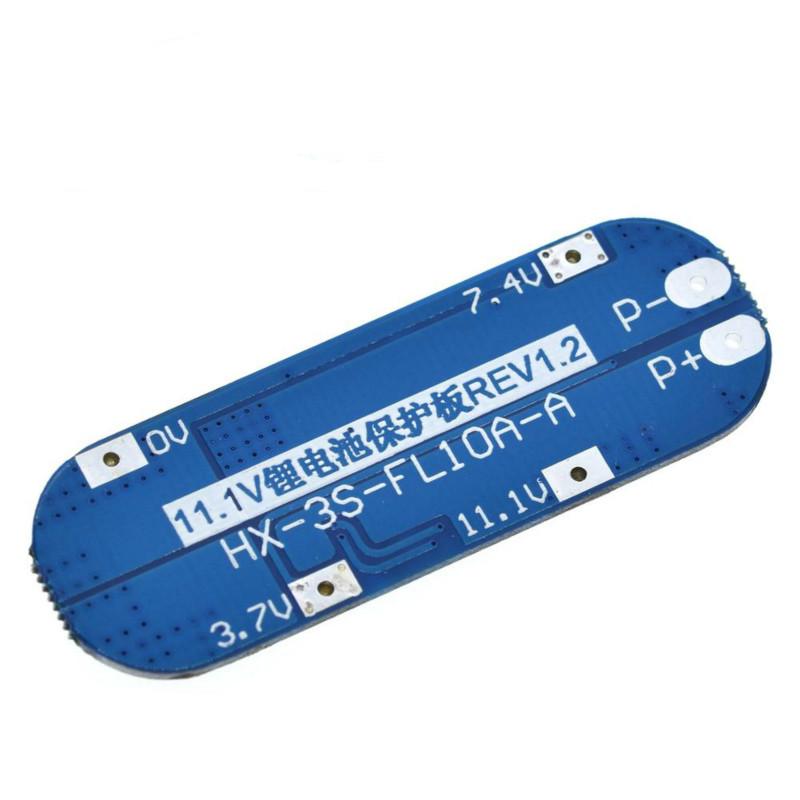

Model: HX – 3 s – FL10 – A
charging voltage range: 4.25 + / – 0.05 v to 4.35 v

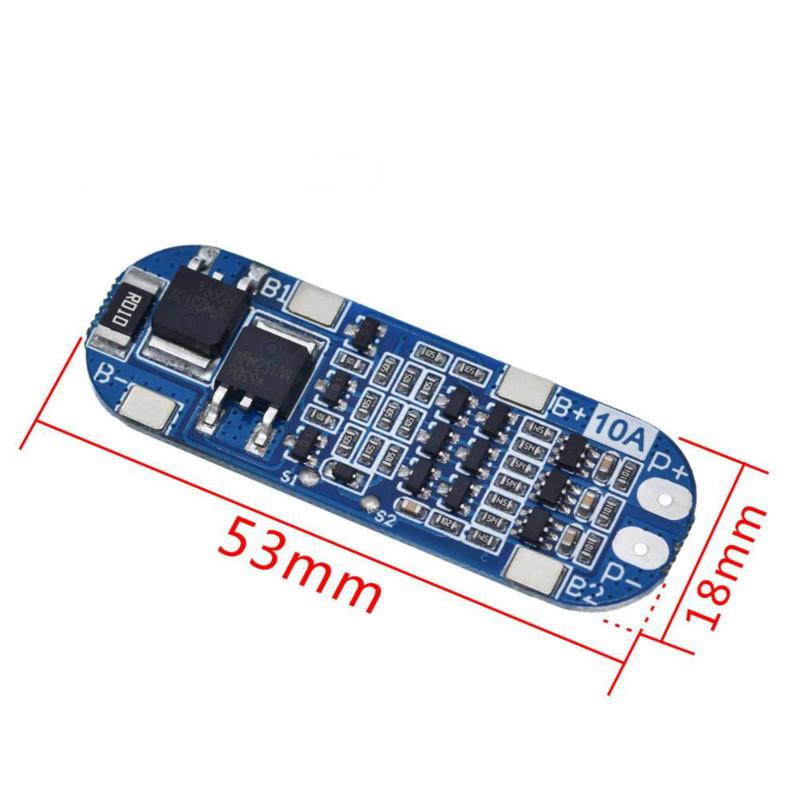

Size: 53 * 17 * 4.0 mm
discharge voltage range: 2.3 + / – 0.05 v to 3.0 v
Maximum working current: 6-8 a
working temperature: – 40 – + 50 ℃
Maximum instantaneous current: 10 to 13 a
storage conditions: – 40 – + 80 ℃
Static electricity: less than 30 ua
useful life: more than 30000 hours
Resistance: less than 100 m Ω
short circuit protection, can protect, delay the recovery.
Charging voltage: 12.6 V – 13 V

Package Include:
1PCS * 3S 10A 11.1V 12V 12.6V Charger Protection Board
