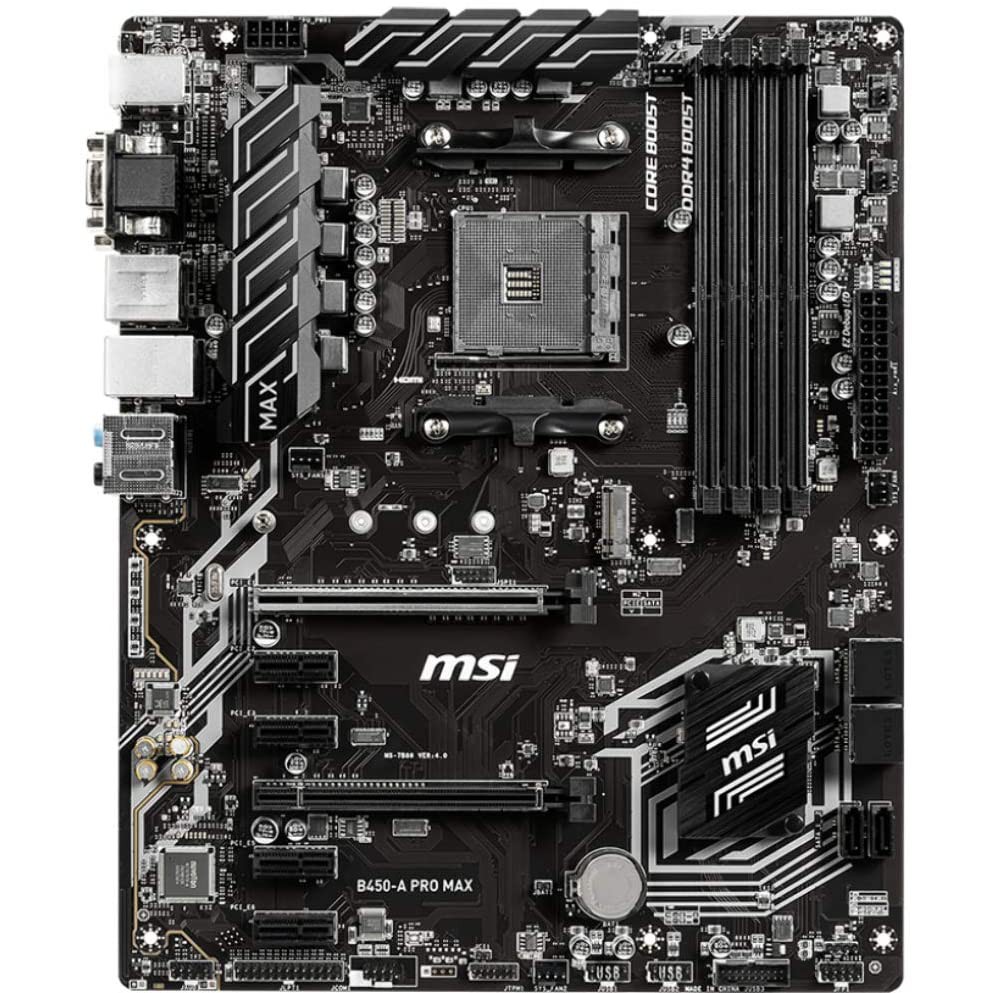

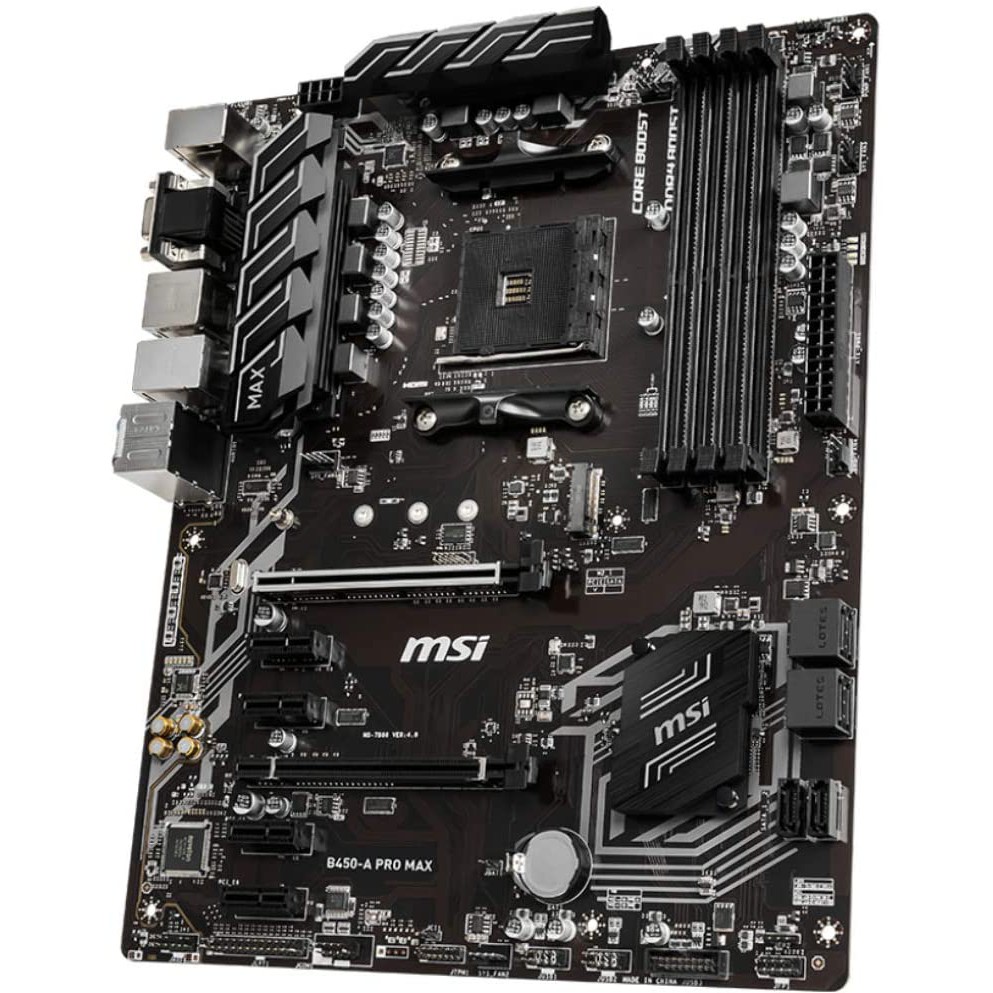

Mall MSI B450 A PRO MAX AM4 DDR4 Mainboard (ใช้แทน H110 BTC,TB250 btc pro,TB360 BTC PRO 2.0)

คุณสมบัติ (AM4) MSI B450 A PRO MAX
Brand MSI
Model
B450-A PRO MAX

CPU Support
Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

Socket
AM4

Chipset
AMD B450

Memory Support
4 x DDR4 memory slots, support up to 64GB
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
– Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz(by A-XMP OC MODE)
For AMD Other CPU
– Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)

Graphics
1 x VGA port, support a maximum resolution of 2048×1280 @60Hz,1920×1200 @60Hz *,**
1 x DVI-D port, support a maximum resolution of 1920×1200 @60Hz *,**
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz *,**

* Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processors

** Maximum shared memory of 2048 MB

Multi Graphic Support
Supports 2-Way AMD® CrossFire™ Technology

Audio
Realtek® ALC892 Codec
– 7.1-Channel High Definition Audio

Expansion Slots
1 x PCIe 3.0 x16 slot (PCI_E1)
– 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
– Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
– Athlon™ with Radeon™ Vega Graphics support x4 mode
1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) *
4 x PCIe 2.0 x1 slots *
* PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.

Storage
AMD® CPU
2 x SATA 6Gb/s ports *
1 x M.2 slot (Key M) *
– Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device
AMD® B450 Chipset
4 x SATA 6Gb/s ports

* SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

USB
AMD® B450 Chipset
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Parallel port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x 5050 RGB LED strip 12V connector

Back Panel Connectors
1 x Flash BIOS Button
1 x PS/2 Combo Port
1 x VGA Port
2 x USB 3.2 Gen1
1 x LAN Port
6 x HD Audio Connectors
2 x USB 2.0 ports
1 x DVI-D Port
1 x HDMI Port
2 x USB 3.2 Gen2

LAN
1 x Realtek® 8111H Gigabit LAN controller

Wireless Data Network
None

Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor

H/W Monitoring
N/A

BIOS
N/A

Special Features
N/A

Software Features
N/A

Operating System Support
Support for Windows® 10 64-bit

5480246221
