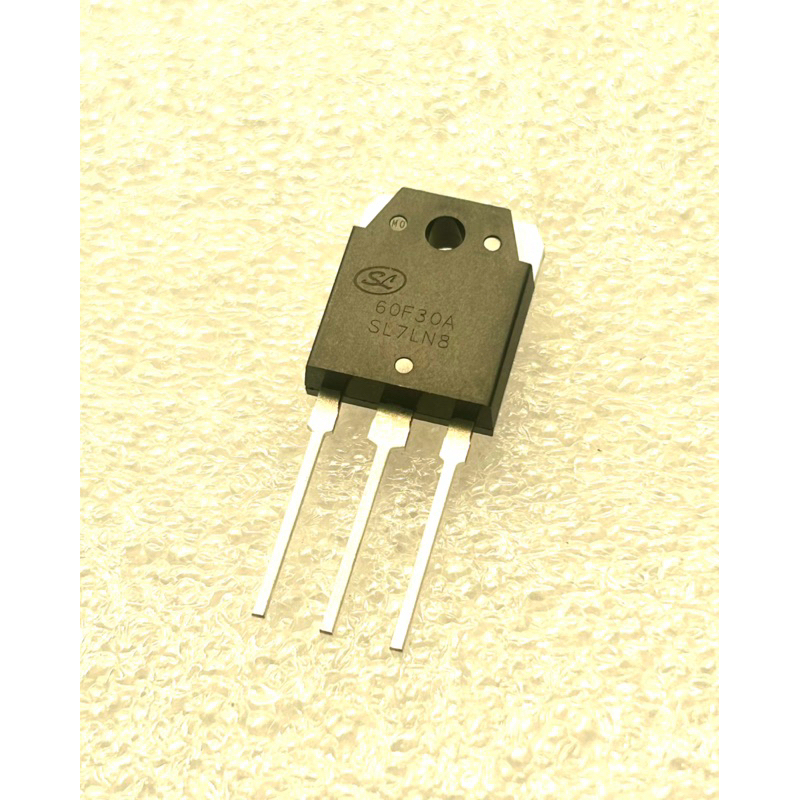

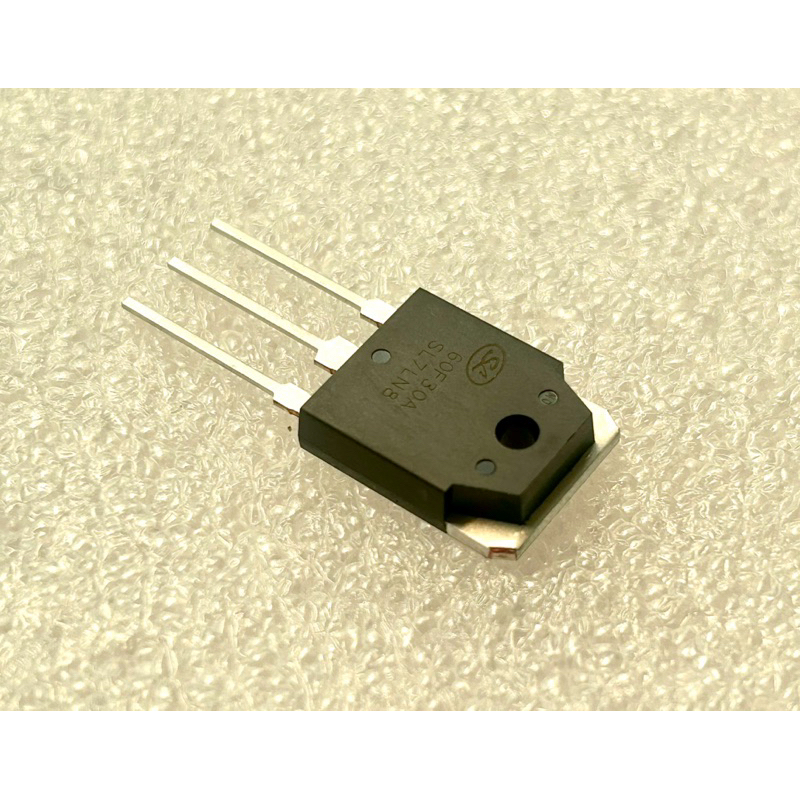

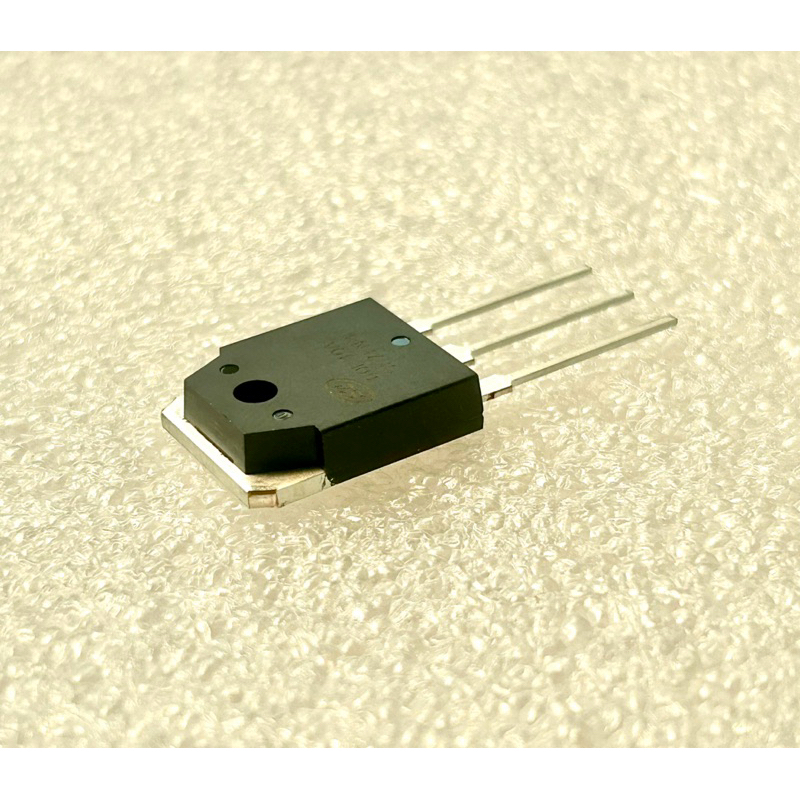

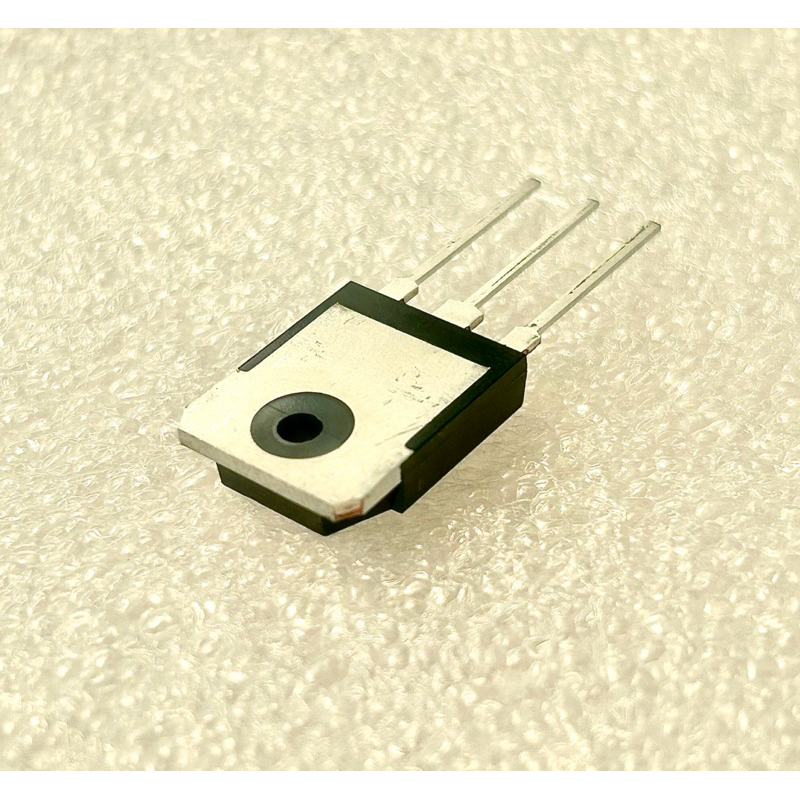

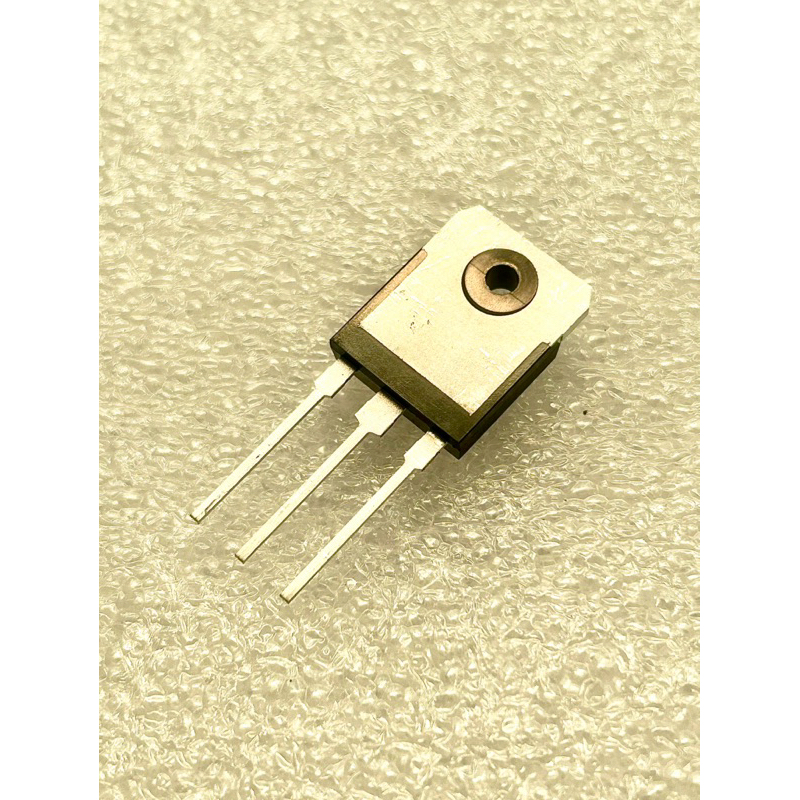

Mall Diode ไดโอด Ultrafast 60F30A 60A 300Vdc 45nS แท้SILAN – โปรปัง

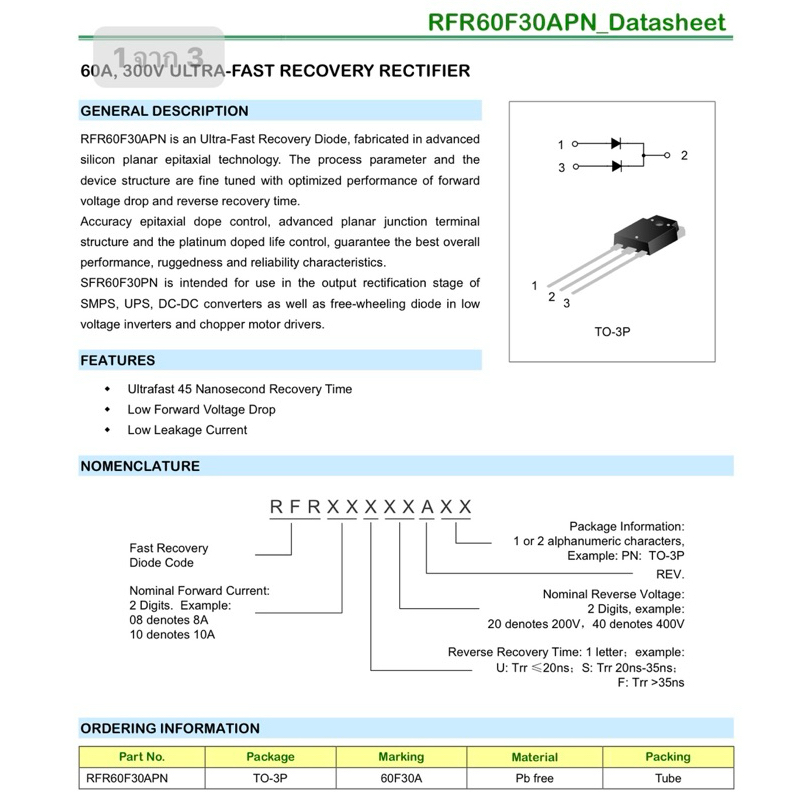

GENERAL DESCRIPTION
RFR60F30
APN is an Ultra-Fast Recovery Diode, fabricated in advanced
silicon planar epitaxial technology. The process parameter and the
device structure are fine tuned with optimized performance of forward
voltage drop and reverse recovery time.
Accuracy epitaxial dope control, advanced planar junction terminal
structure and the platinum doped life control, guarantee the best overall
performance, ruggedness and reliability characteristics.
SFR60F30PN is intended for use in the output rectification stage of
SMPS, UPS, DC-DC converters as well as free-wheeling diode in low
voltage inverters and chopper motor drivers.
TO-3P
FEATURES
 Ultrafast 45 Nanosecond Recovery Time
 Low Forward Voltage Drop
 Low Leakage Current
