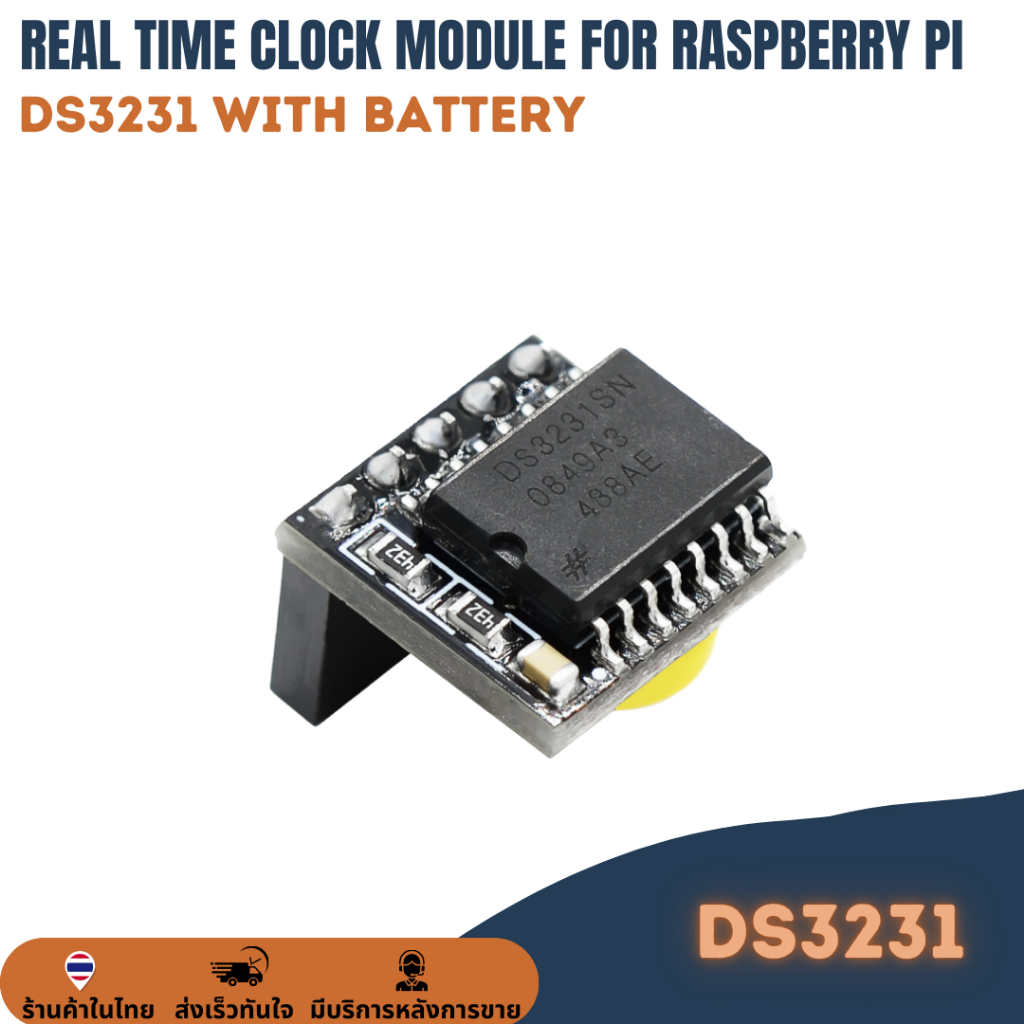

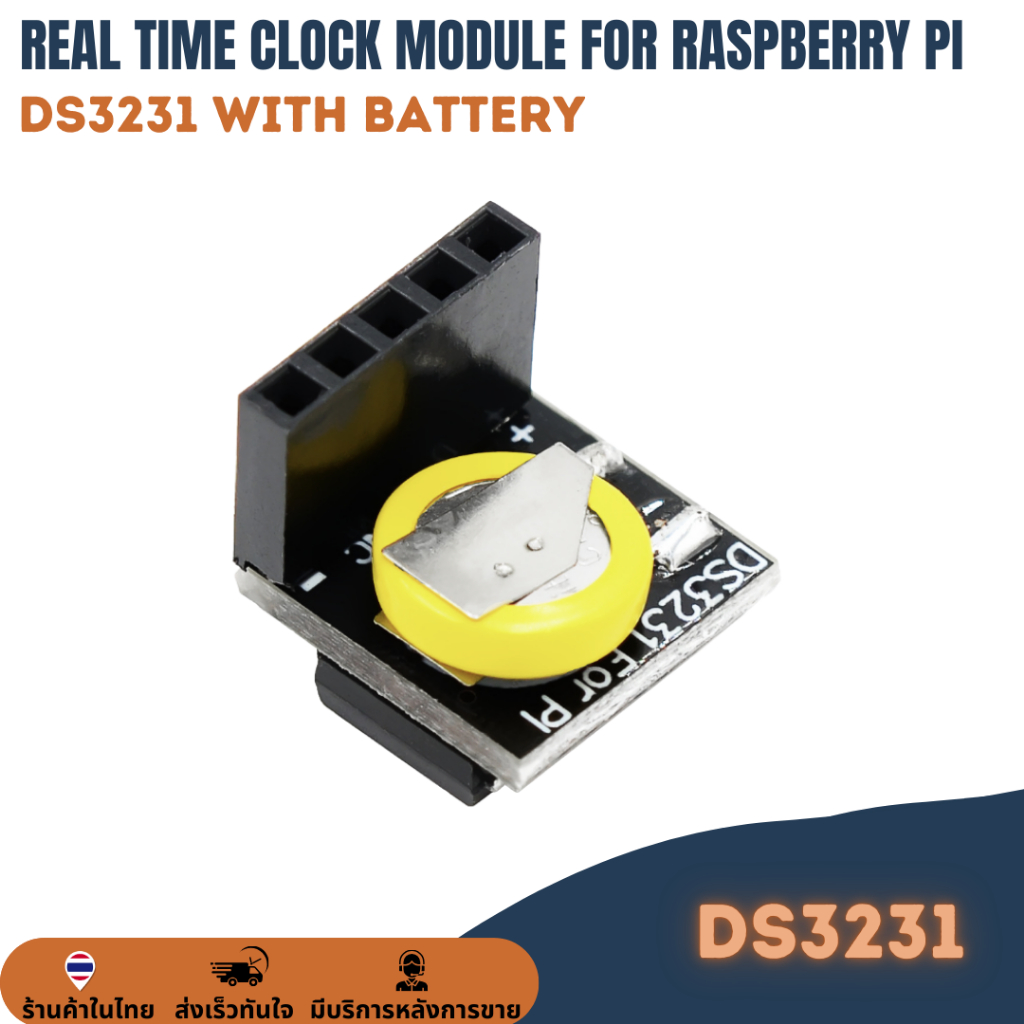

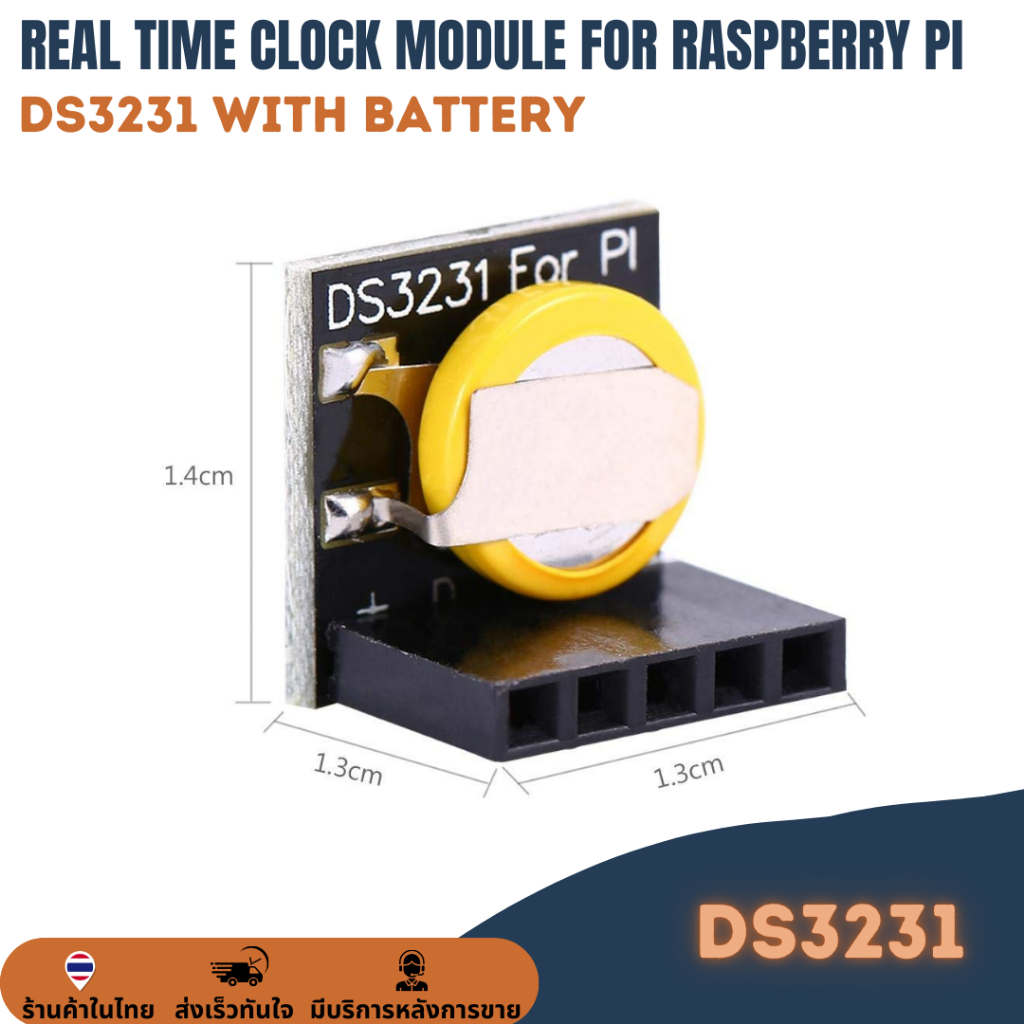

DS3231 Real Time Clock Module for Raspberry Pi

โมดูลนาฬิกา Real Time Clock ใช้ไอซีเบอร์ DS3231 มีเซนเซอร์อุณหภูมิในตัว พร้อมแบตเตอร์รี่

The DS3231 is a low-cost, extremely accurate I2C real- time clock (RTC) with an integrated temperature- compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input, and maintains accu- rate timekeeping when main power to the device is inter- rupted. The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The DS3231 is available in commercial and industrial temperature ranges, and is offered in a 16-pin, 300-mil SO package.

คุณสมบัติ DS3231 Real Time Clock Module for Raspberry Pi
Accuracy ±2ppm from 0°C to +40°C
Accuracy ±3.5ppm from -40°C to +85°C
Battery Backup Input for Continuous Timekeeping
Operating Temperature Ranges – Commercial: 0°C to +70°C, Industrial: -40°C to +85°C
Low-Power Consumption
Real-Time Clock Counts Seconds, Minutes, Hours, Day, Date, Month, and Year with Leap Year Compensation Valid Up to 2100
Two Time-of-Day Alarms
Programmable Square-Wave Output
Fast (400kHz) I2C Interface
3.3V Operation
Digital Temp Sensor Output: ±3°C Accuracy
Register for Aging Trim
RST Output/Pushbutton Reset Debounce Input
Underwriters Laboratories (UL) Recognized
