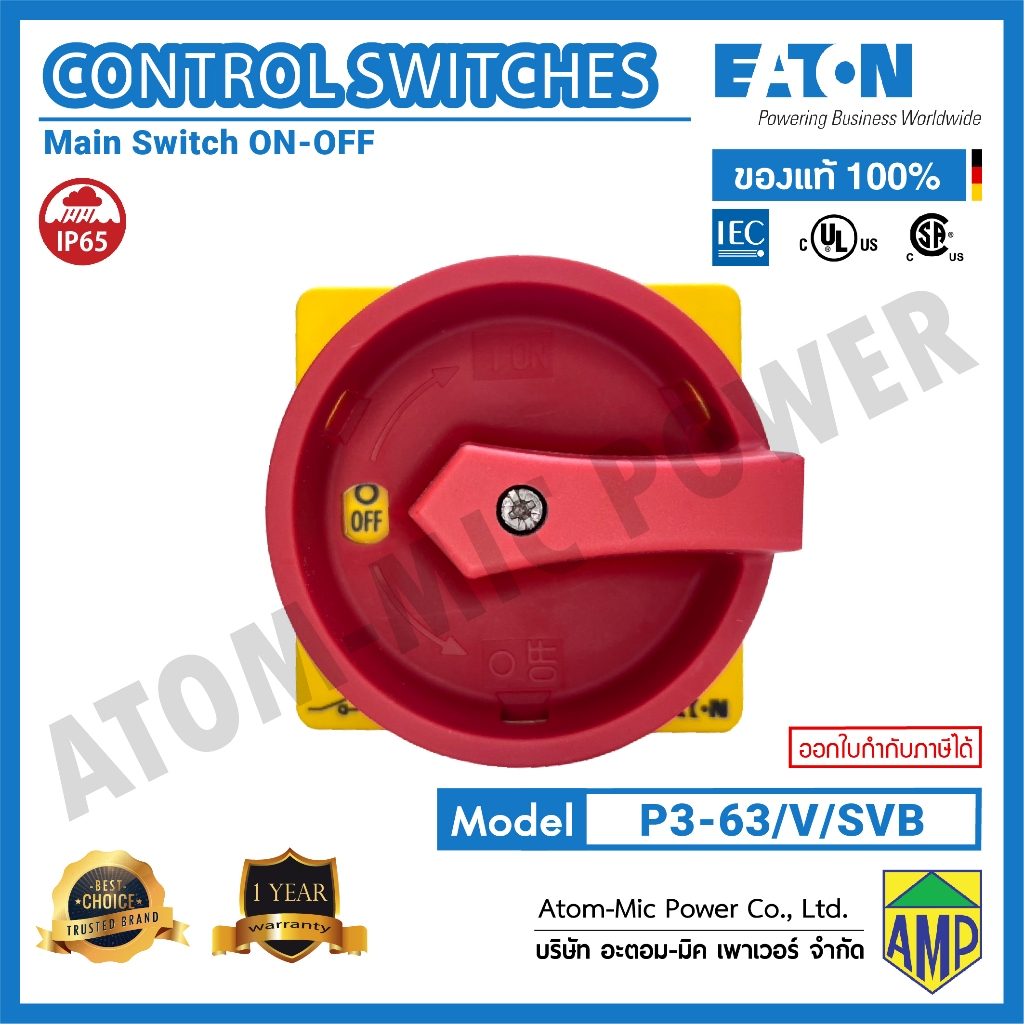

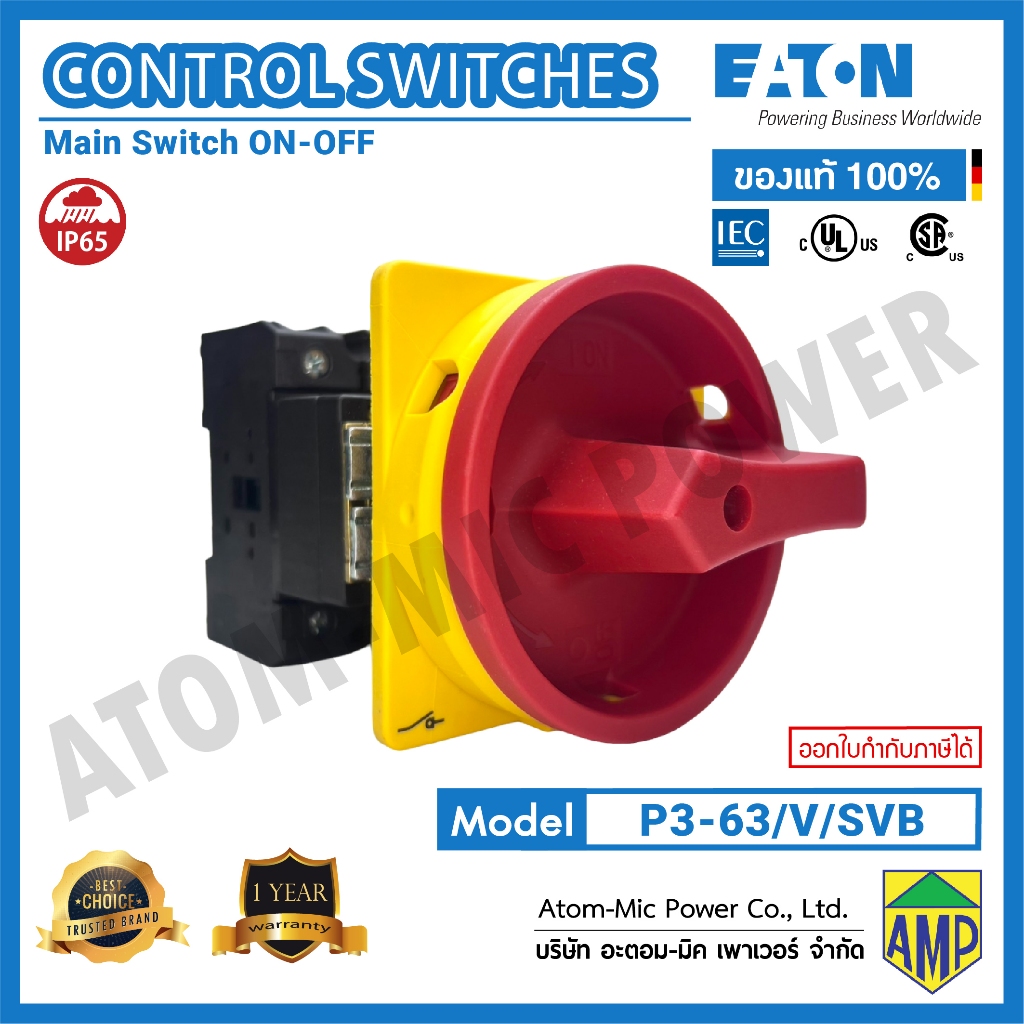

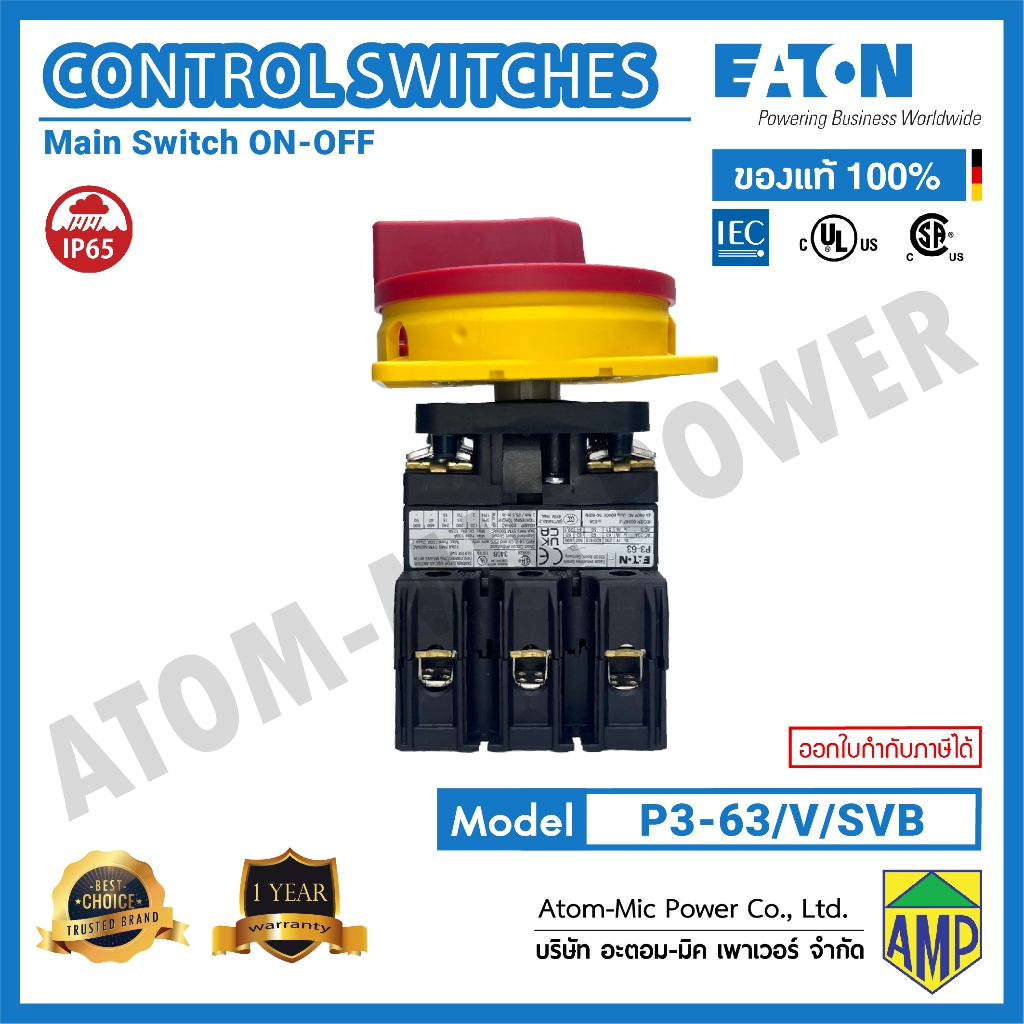

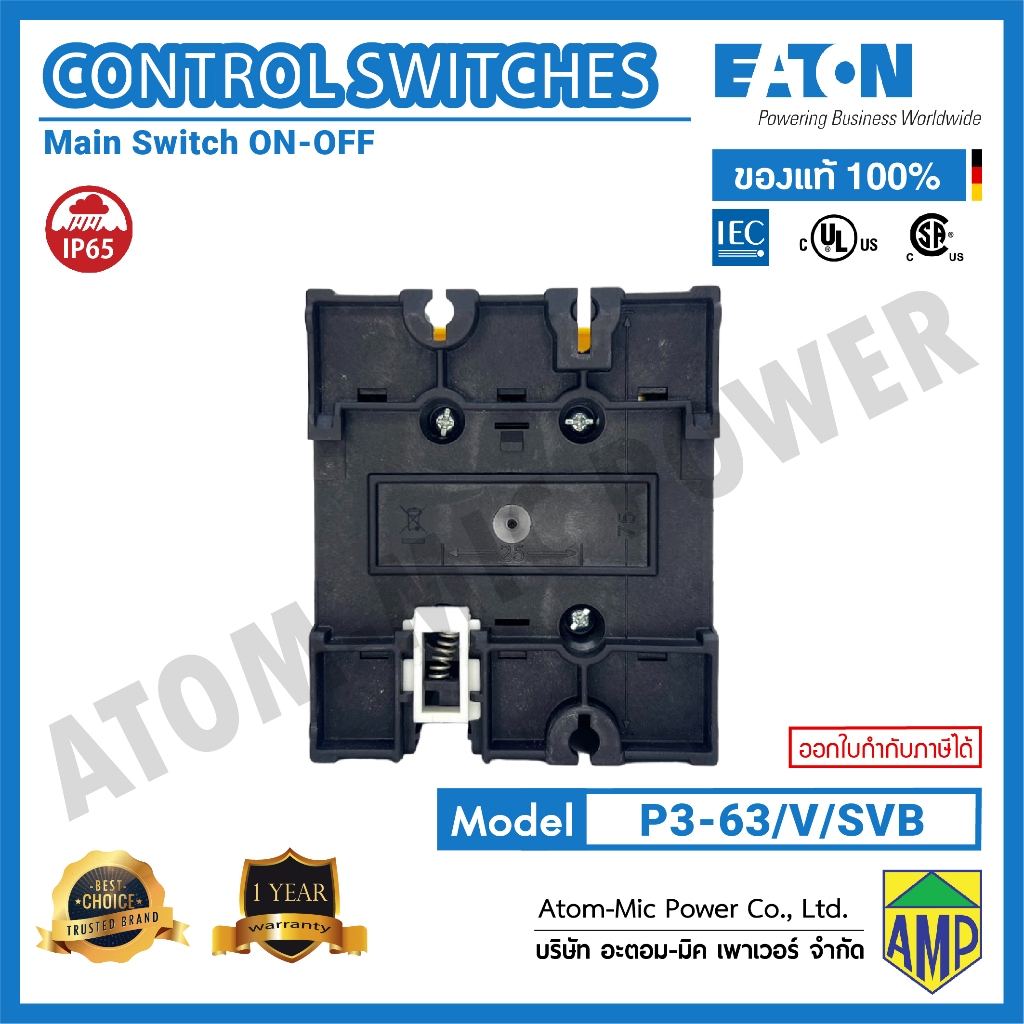

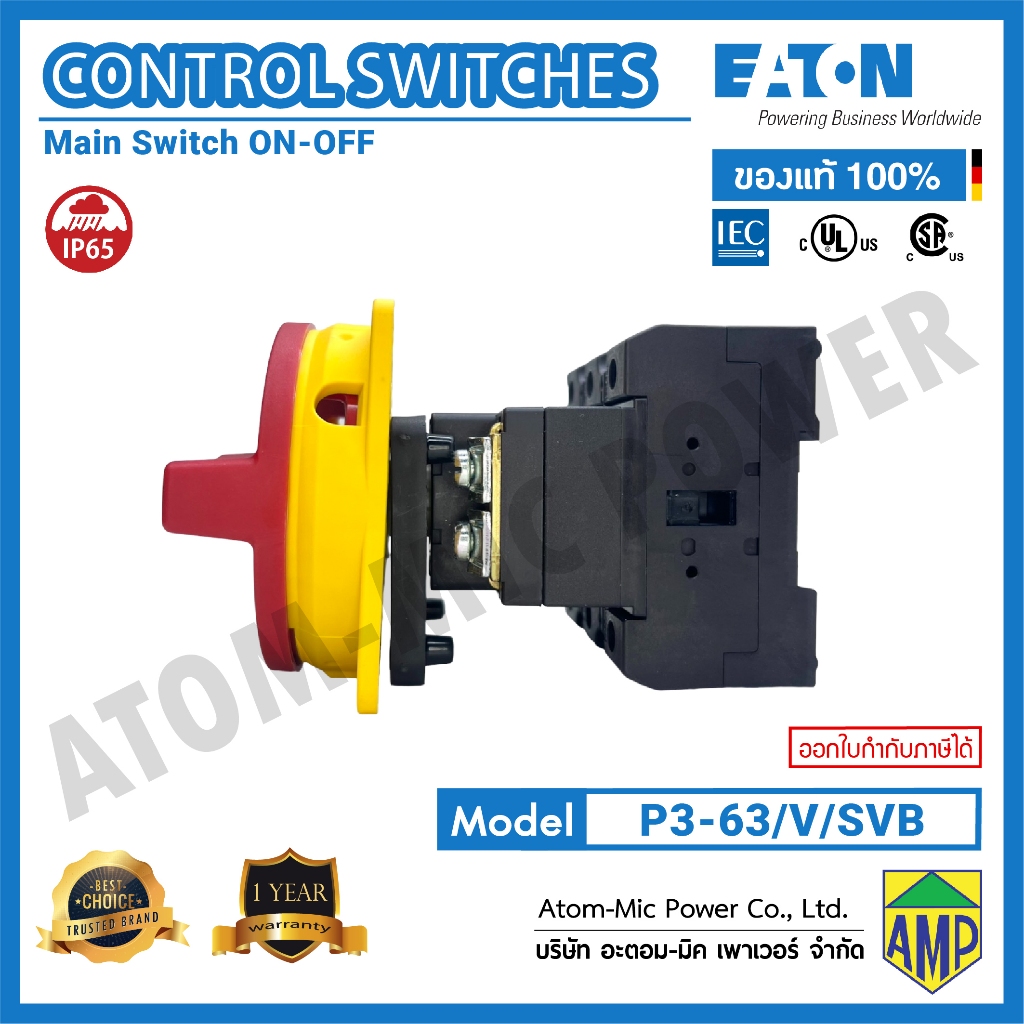

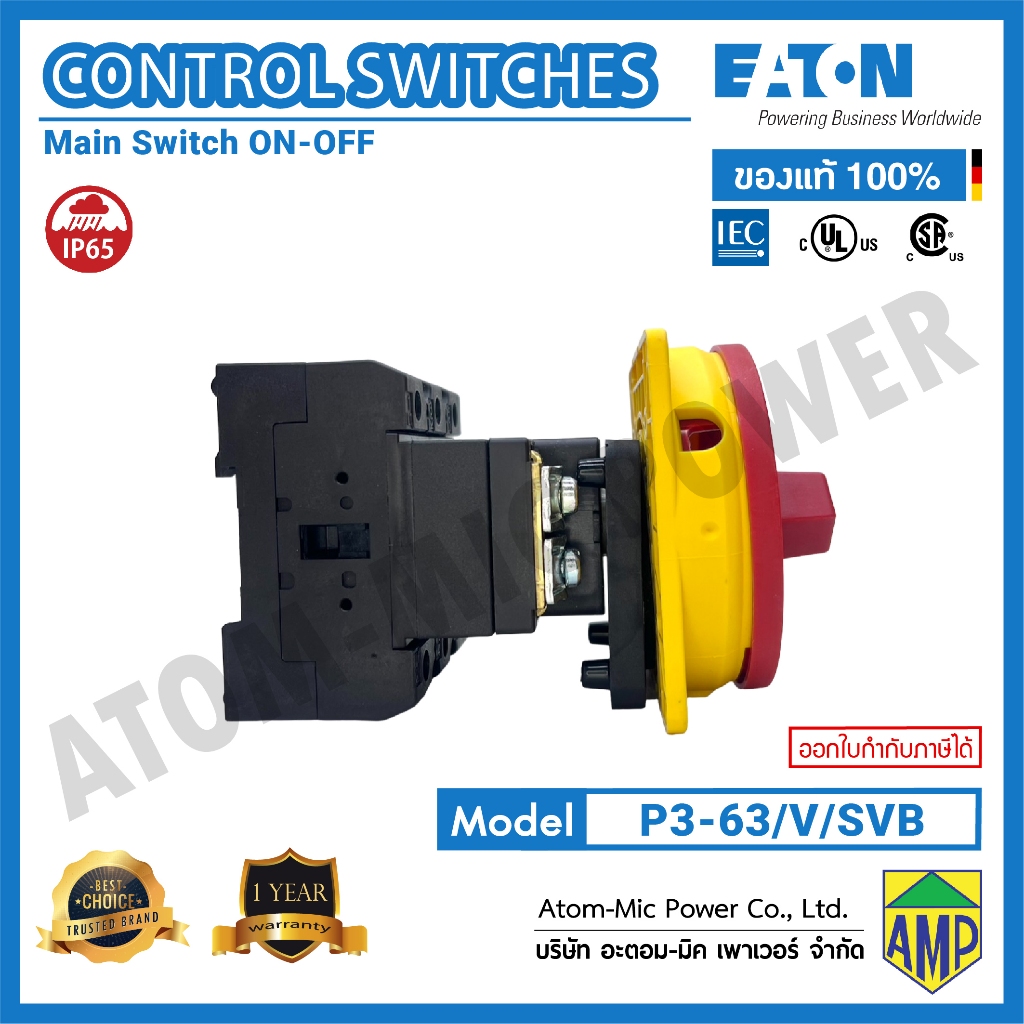

Mall P3-63/V/SVB – สวิตช์ตัดวงจรไฟ แบบบิดเปิด-ปิด – Main switch, P3, 63 A, flush mounting, 3 pole – โปรปัง

– Part no. : P3-63/V/SVB
– Product Type : Main switch
– Product Tradename : P3
– Catalog Notes : Rated Short-time Withstand Current (Icw) for a time of 1 second
– Product weight : 0.465 kilogram
– Product Length/Depth : 147 millimetre
– Product height : 102 millimetre
– Product width : 87 millimetre
– Functions : Interlockable
Emergency switching off function
– Locking facility : Lockable in the 0 (Off) position
– Number of poles : 3
– Degree of protection (front side) : IP65
– Rated impulse withstand voltage (Uimp) : 6000 V AC
– Safe isolation : 440 V AC, Between the contacts, According to EN 61140
– Screw size : M5, Terminal screw
– Tightening torque : 3 Nm, Screw terminals
26.5 lb-in, Screw terminals
– Rated uninterrupted current (Iu) : 63 A
– Actuator color : Red
– Rated operational current for specified heat dissipation (In) : 63 A
– Rated operating voltage V : 690 – 690
