Mall REAN RC3MR 3 pole male right-angle XLR cable connector ปลั๊ก XLR ผู้ ตัวงอ สีเงิน By NEUTRIK

REAN RC3MR 3 pole male right-angle XLR cable connector ปลั๊ก XLR ผู้ ตัวงอ สีเงิน By NEUTRIK

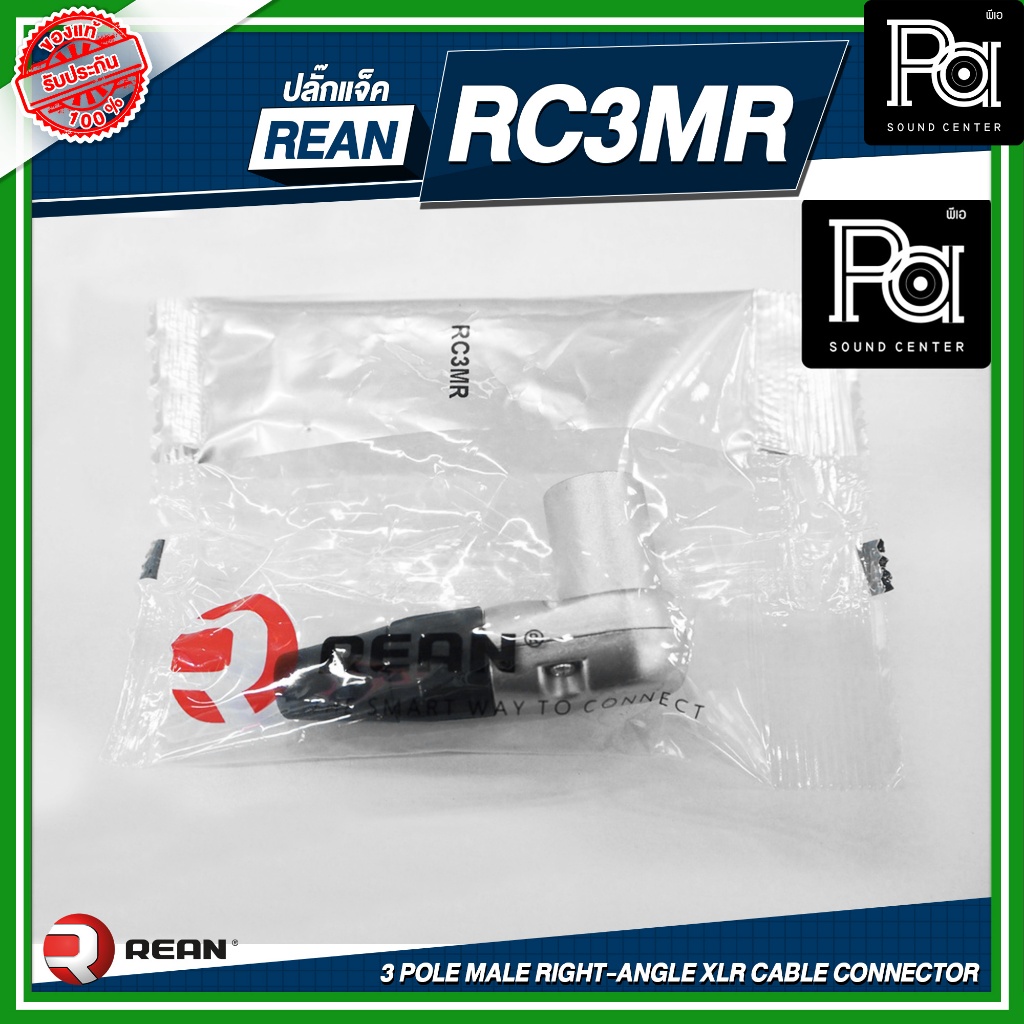

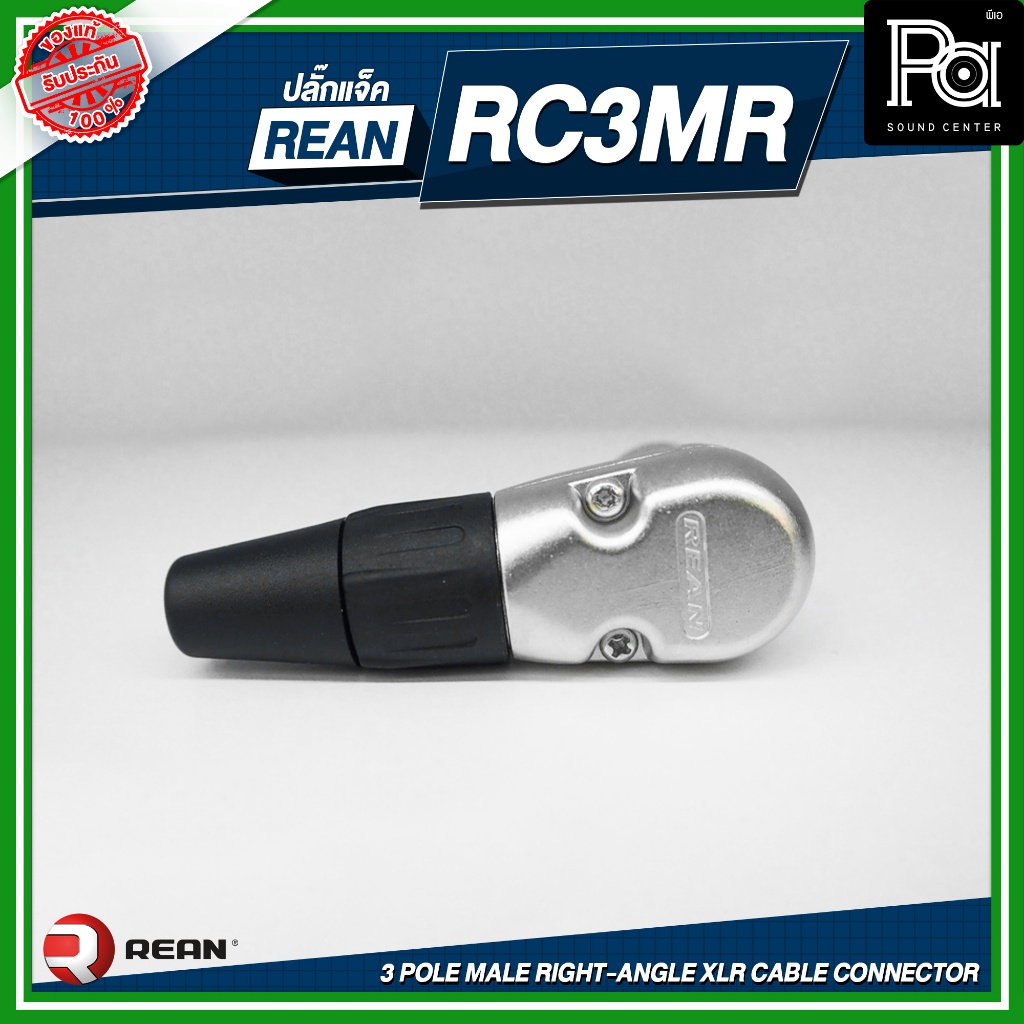

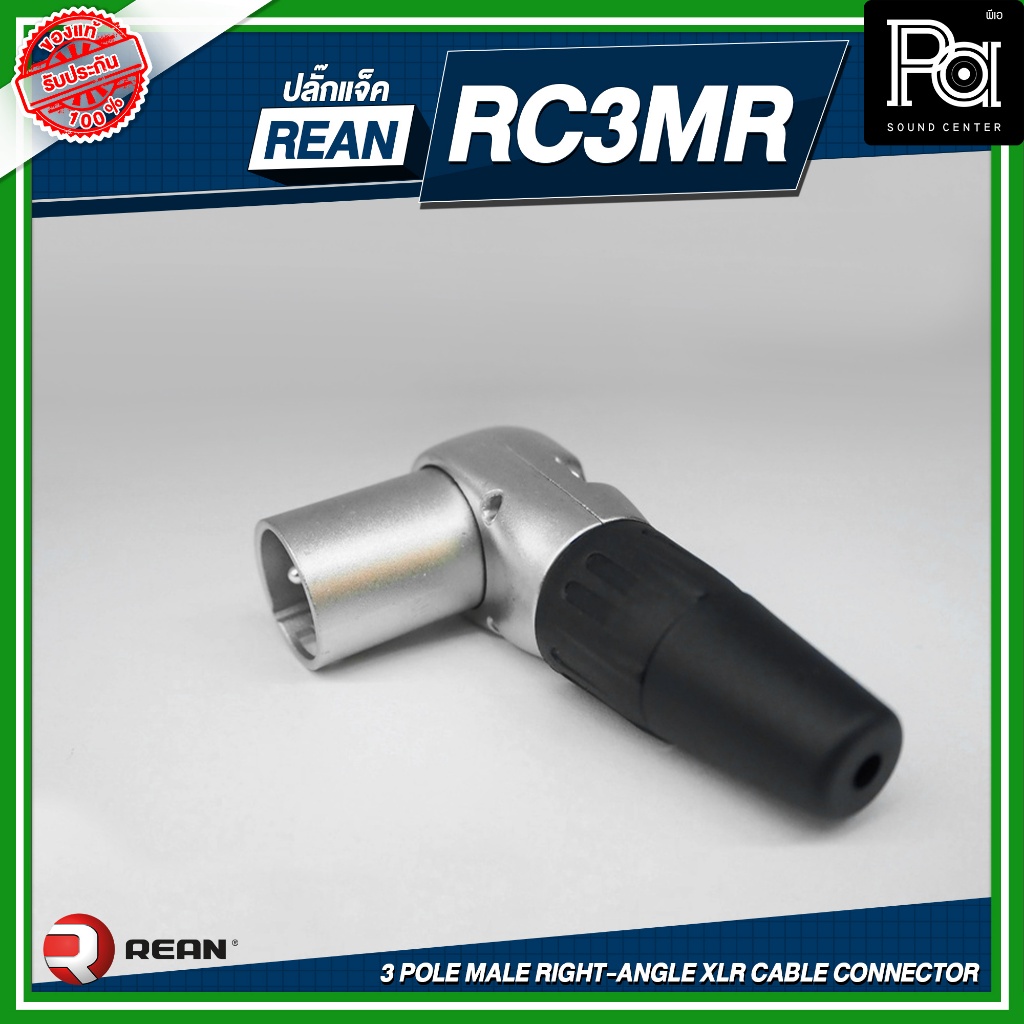

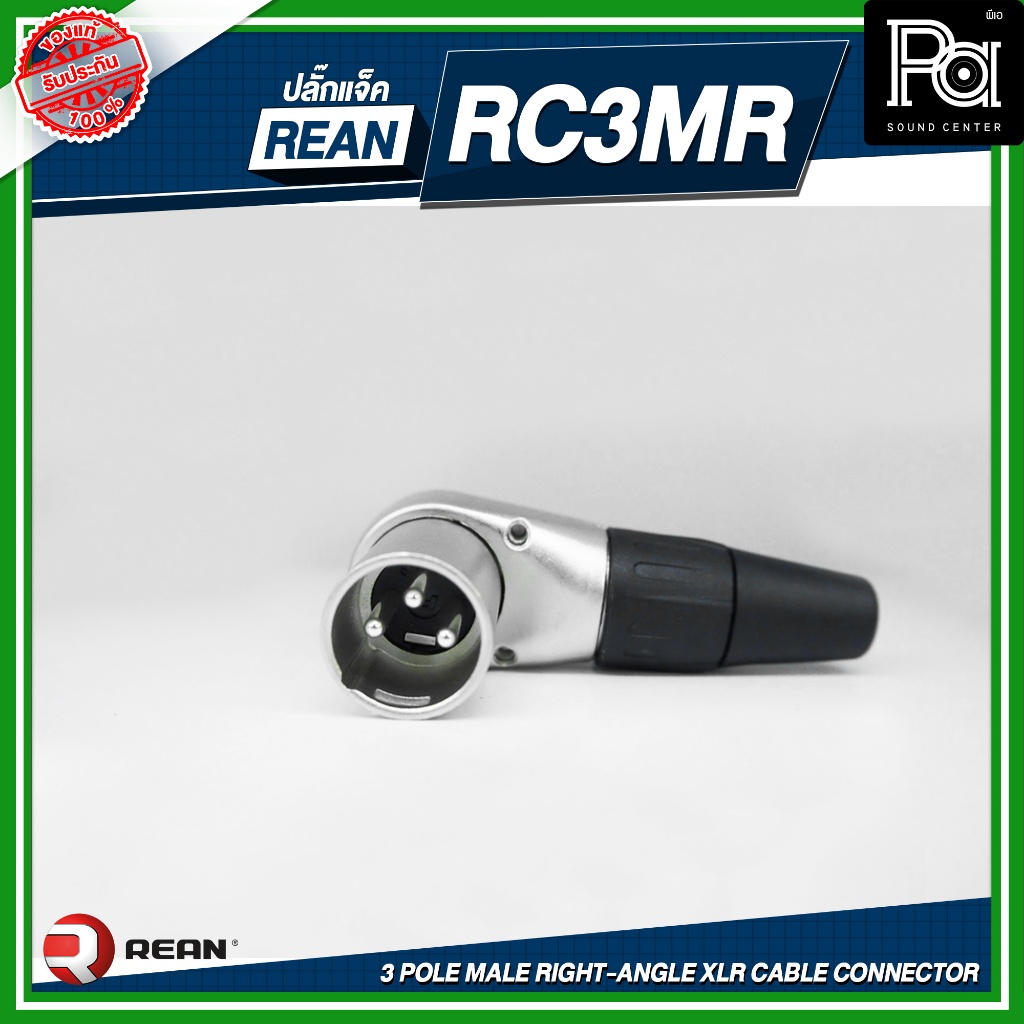

“REAN RC3MR 3 pole male right-angle XLR cable connector
Nickel plated housing, Silver plated contactsTechnical Information

Product
Title RC3MR
Connection Type XLR
Gender male

Electrical
Insulation Resistance > 1.5 GΩ
Contact Resistance ≤ 5 mΩ
Rated Current 10 A

Mechanical
Lifetime >1000 Mating Cycles
Insertion Force ≤ 30 N
Withdrawal Force ≤ 20 N
Cable O.D. 4 – 7 mm
Wiresize 1.5 mm²
Wiresize 16 AWG

Material
Pin Brass
Male Insert PA6+30%GF UL94-HB
Ground Contact Bronze
Housing Zinc
Front Body Zinc
Push Tube PP
Cover Zinc
Chuck POM
Bushing PA6+30%GF
Push Ring POM
Boot PVC
Pin Sliver Plating
Ground Contact Tin and Cer
Housing Nickel Plating
Front Body Nickel Plating
Cover Nickel Plating
“
