Features:
Support devices with RS485 interface: surveillance cameras, video capture device, fingerprint attendance machine, PBX, CNC machine, microcontroller, etc.
Specifications:
Standard: USB2.0 standard, backward compatible, in line with the standard RS485
Direction control: the use of automatic data flow control, auto distinguish and control data transfer direction
Baud rate:300-9216000bps, automatically detecting the serial signal data rate
Load capacity: support multipoint, each converter allows RS485 interface device to connect 32
Interface Protection: TVS tube protection, USB self-recovery protection
Support Windows98/ME/2000/XP/WIN7/Vista, Linux, Mac
Color: green
Size: 75*18*14mm
Net weight: 15 g
New products, industrial grade USB to 485 modules, 485 chips to facilitate the replacement for the 485 chip hardware debug easy to burn out the case easier to use.
Package Include:

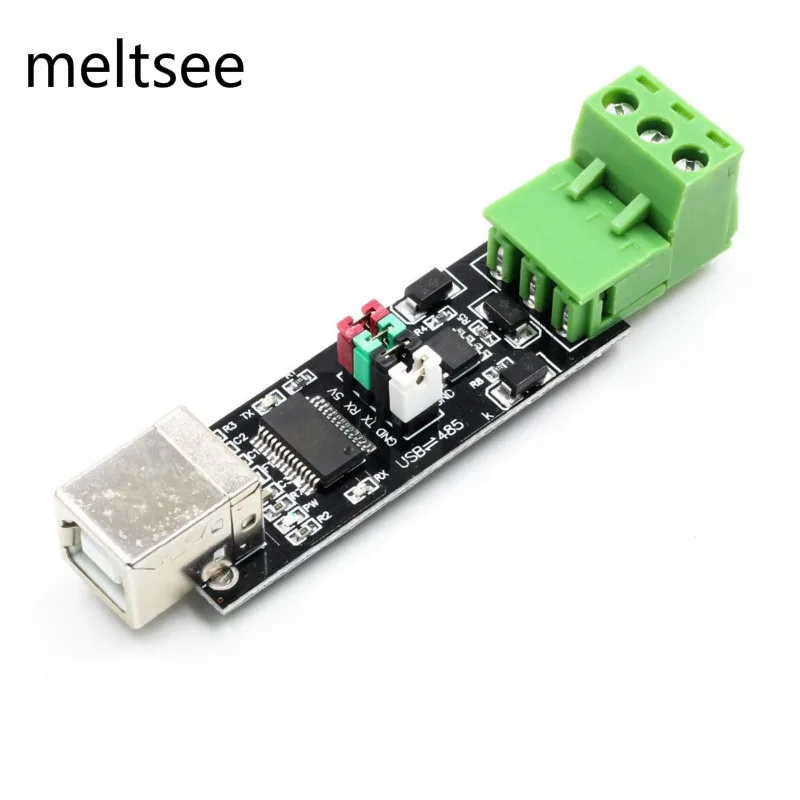

1* USB to TTL/RS485 Converter Adapter Module
#USB 2.0 to TTL RS485 Serial Converter Adapter FTDI FT232RL SN75176 double function double protection
